Place of Origin: | China |
Brand Name: | RJ |
Certification: | CE/KC/MSDS/UN38.3/ROHS/IEC62133 |
Model Number: | Lifepo4 battery |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | USD1-10000.00 / PCS (FOB Shenzhen) |
Packaging Details: | Wooden box & Carton Package |
Delivery Time: | 7 days |
Payment Terms: | T/T |
Supply Ability: | 100000 Piece/Pieces per Month |
MATERIAL: | Lifepo4 Battery | VOLTAGE: | 12V-144V |
---|---|---|---|
CAPACITY: | 10Ah-1000Ah | WEIGHT: | Flexible |
LIFE CYCLES: | >6000times(100%DOD) | LIFESPAN: | >20years |

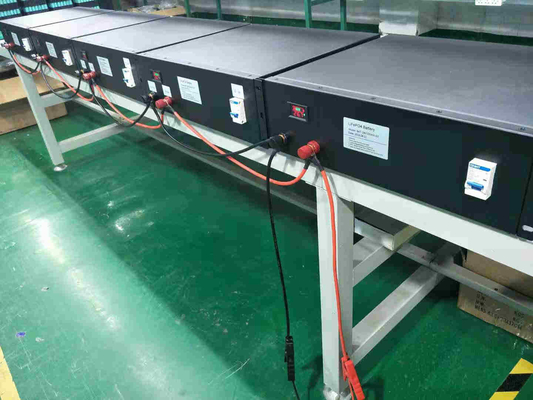

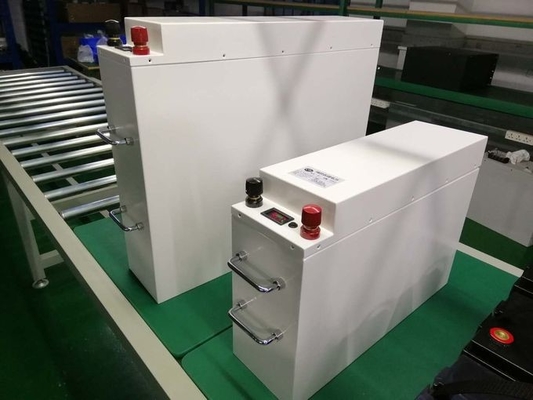

Lifepo4 battery
12V-144V, 10Ah Up to 1000Ah On Sale!
Perfect For Solar off grid energy storage RV EV Boat
WHY CHOOSE US?
1. Our company is a high-tech enterprise with 16 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
12v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/232 | Warranty | Life Cycles |
12 | 6 | 150mm*95mm*65mm | 1.2KG | Yes | Optional | 5 years | >6000 times |
12 | 8 | 150mm* 95mm* 65mm | 1.3KG | Yes | Optional | 5 years | >6000 times |
12 | 10 | 150mm*95mm*65mm | 2KG | Yes | Optional | 5 years | >6000 times |
12 | 12 | 150mm*95mm*65mm | 2.4KG | Yes | Optional | 5 years | >6000 times |
12 | 14 | 152mm*100mm*95mm | 2.8KG | Yes | Optional | 5 years | >6000 times |
12 | 15 | 181mm*77mm*175mm | 3KG | Yes | Optional | 5 years | >6000 times |
12 | 18 | 181mm*77mm*175mm | 3KG | Yes | Optional | 5 years | >6000 times |
12 | 20 | 181mm*77mm*175mm | 4KG | Yes | Optional | 5 years | >6000 times |
12 | 24 | 181mm*77mm*175mm | 4KG | Yes | Optional | 5 years | >6000 times |
12 | 30 | 223mm*106mm*175mm | 6.2KG | Yes | Optional | 5 years | >6000 times |
12 | 36 | 223mm*106mm*175mm | 8.5KG | Yes | Optional | 5 years | >6000 times |
12 | 40 | 195mm*165mm*175mm | 9KG | Yes | Optional | 5 years | >6000 times |
12 | 50 | 195MM*165MM*175MM | 9.5KG | Yes | Optional | 5 years | >6000 times |
12 | 60 | 240mm*160mm*120mm | 10KG | Yes | Optional | 5 years | >6000 times |
12 | 65 | 240MM*160MM*120MM | 12KG | Yes | Optional | 5 years | >6000 times |
12 | 70 | 240mm*158mm*190mm | 12KG | Yes | Optional | 5 years | >6000 times |
12 | 80 | 320mm*240mm*110mm | 15KG | Yes | Optional | 5 years | >6000 times |
12 | 85 | 330mm*175mm*220mm | 16KG | Yes | Optional | 5 years | >6000 times |
12 | 100 | 330mm*175mm*220mm | 19KG | Yes | Optional | 5 years | >6000 times |
12 | 120 | 330mm*175mm*220mm | 20KG | Yes | Optional | 5 years | >6000 times |
12 | 130 | 330mm*175mm*220mm | 22KG | Yes | Optional | 5 years | >6000 times |
12 | 150 | 330mm*175mm*220mm | 25KG | Yes | Optional | 5 years | >6000 times |
12 | 200 | 485mm*175mm*240mm | 32KG | Yes | Optional | 5 years | >6000 times |
12 | 250 | 525mm*240mm*215mm | 44KG | Yes | Optional | 5 years | >6000 times |
12 | 300 | 485mm*175mm*240mm | 45KG | Yes | Optional | 5 years | >6000 times |
12 | 400 | 525mm*275mm*220mm | 55KG | Yes | Optional | 5 years | >6000 times |
12 | 600 | 800mm*500mm*160mm | 78KG | Yes | Optional | 5 years | >6000 times |
12 | 1000 | 800mm*500mm*350mm | 125KG | Yes | Optional | 5 years | >6000 times |
24v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
24 | 10 | 181*77*175mm | 4.5kg | Yes | Optional | 5years | >6000times |
24 | 20 | 223*106*175mm | 9kg | Yes | Optional | 5years | >6000times |
24 | 30 | 195*165*175mm | 12kg | Yes | Optional | 5years | >6000times |
24 | 40 | 195*165*175mm | 15kg | Yes | Optional | 5years | >6000times |
24 | 50 | 330*175*220mm | 18.5kg | Yes | Optional | 5years | >6000times |
24 | 60 | 330*175*220mm | 20kg | Yes | Optional | 5years | >6000times |
24 | 70 | 330*175*220mm | 22kg | Yes | Optional | 5years | >6000times |
24 | 80 | 407*175*235mm | 24kg | Yes | Optional | 5years | >6000times |
24 | 100 | 485*175*240mm | 32kg | Yes | Optional | 5years | >6000times |
24 | 130 | 545*240*215mm | 36kg | Yes | Optional | 5years | >6000times |
24 | 150 | 525*275*220mm | 48kg | Yes | Optional | 5years | >6000times |
24 | 200 | 525*275*220mm | 55kg | Yes | Optional | 5years | >6000times |
24 | 250 | 800*500*160mm | 68kg | Yes | Optional | 5years | >6000times |
24 | 400 | 800*500*160mm | 110kg | Yes | Optional | 5years | >6000times |
36v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
36 | 10 | 165*125*175mm | 6.5kg | Yes | Optional | 5years | >6000times |
36 | 20 | 240*158*190mm | 9kg | Yes | Optional | 5years | >6000times |
36 | 30 | 195*165*175mm | 14kg | Yes | Optional | 5years | >6000times |
36 | 40 | 330*175*220mm | 18kg | Yes | Optional | 5years | >6000times |
36 | 50 | 330*175*220mm | 22kg | Yes | Optional | 5years | >6000times |
36 | 60 | 485*175*240mm | 30kg | Yes | Optional | 5years | >6000times |
36 | 70 | 525*275*220mm | 34kg | Yes | Optional | 5years | >6000times |
36 | 80 | 525*275*220mm | 40kg | Yes | Optional | 5years | >6000times |
36 | 100 | 522*270*215mm | 48kg | Yes | Optional | 5years | >6000times |
36 | 200 | 530*495*425mm | 85kg | Yes | Optional | 5years | >6000times |
48v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
48 | 10 | 195*165*175mm | 8kg | Yes | Optional | 5years | >6000times |
48 | 20 | 240*158*190mm | 14kg | Yes | Optional | 5years | >6000times |
48 | 30 | 330*175*220mm | 20kg | Yes | Optional | 5years | >6000times |
48 | 40 | 330*175*220mm | 28kg | Yes | Optional | 5years | >6000times |
48 | 50 | 522*237*215mm | 33kg | Yes | Optional | 5years | >6000times |
48 | 60 | 525*240*215mm | 40kg | Yes | Optional | 5years | >6000times |
48 | 75 | 522*270*215mm | 42kg | Yes | Optional | 5years | >6000times |
48 | 80 | 525*273*225mm | 48kg | Yes | Optional | 5years | >6000times |
48 | 100 | 350*540*160mm | 55kg | Yes | Optional | 5years | >6000times |
48 | 200 | 800*500*160mm | 110kg | Yes | Optional | 5years | >6000times |
48 | 300 | 800*500*350mm | 150kg | Yes | Optional | 5years | >6000times |
48 | 400 | 800*500*350mm | 210kg | Yes | Optional | 5years | >6000times |
60v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
60 | 10 | 195*165*175mm | 9.5kg | Yes | Optional | 5years | >6000times |
60 | 20 | 330*175*220mm | 19kg | Yes | Optional | 5years | >6000times |
60 | 30 | 407*175*235mm | 25kg | Yes | Optional | 5years | >6000times |
60 | 40 | 407*175*235mm | 28kg | Yes | Optional | 5years | >6000times |
60 | 50 | 525*240*215mm | 44kg | Yes | Optional | 5years | >6000times |
60 | 120 | 420*360*550mm | 84kg | Yes | Optional | 5years | >6000times |
60 | 200 | 1000*600*182mm | 156kg | Yes | Optional | 5years | >6000times |
72v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
72 | 10 | 195*165*175mm | 13kg | Yes | Optional | 5years | >6000times |
72 | 20 | 330*175*220mm | 20kg | Yes | Optional | 5years | >6000times |
72 | 30 | 485*175*240mm | 32kg | Yes | Optional | 5years | >6000times |
72 | 40 | 525*240*215mm | 43kg | Yes | Optional | 5years | >6000times |
72 | 50 | 505*273*225mm | 48kg | Yes | Optional | 5years | >6000times |
72 | 60 | 350*540*160mm | 50kg | Yes | Optional | 5years | >6000times |
72 | 70 | 350*540*160mm | 58kg | Yes | Optional | 5years | >6000times |
72 | 100 | 600*200*300mm | 50kg | Yes | Optional | 5years | >6000times |
72 | 200 | 179*1448*282mm | 220kg | Yes | Optional | 5years | >6000times |
72 | 300 | 800*400*300mm | 260kg | Yes | Optional | 5years | >6000time |
3.2V LIFEPO4 BATTERY CELL | ||||
Type Lifepo4 | Dimensions | Weight | Cycles @ 100%DOD | Warranty |
3.2V 10AH | D17*W79*H135MM | 0.55KG | >6000times | 5years |
3.2V 25AH | D20*W100*H140MM | 0.95KG | >6000times | 5years |
3.2V 40AH | D26*W135*H170MM | 1.33KG | >6000times | 5years |
3.2V 42AH | D27*W147*H147MM | 1.33KG | >6000times | 5years |
3.2V 50AH | D32*W173*H127MM | 1.42KG | >6000times | 5years |
3.2V 60AH | D32*W174*H148MM | 1.65KG | >6000times | 5years |
3.2V 75AH | D48*W174*H128MM | 2.12KG | >6000times | 5years |
3.2V 80AH | D48*W173*H126MM | 2.12KG | >6000times | 5years |
3.2V 86AH | D48*W173*H126MM | 2.12KG | >6000times | 5years |
3.2V 92AH | D29*W174*H203MM | 2.10KG | >6000times | 5years |
3.2V100AH | D34*W200*H168MM | 2.78KG | >6000times | 5years |
3.2V 120AH | D48*W173*H166MM | 2.84KG | >6000times | 5years |
3.2V 140AH | D46*W200*H168MM | 3.10KG | >6000times | 5years |
3.2V 160AH | D72*W174*H138MM | 3.46KG | >6000times | 5years |
3.2V 176AH | D54*W173*H200MM | 3.82KG | >6000times | 5years |
3.2V 200AH | D71*W173*H166MM | 5.00KG | >6000times | 5years |
3.2V 240AH | D71*W173*H200MM | 5.00KG | >6000times | 5years |
3.2V 271AH | D71*W173*H200MM | 5.40KG | >6000times | 5years |
Application of LFP battery
1.LFP Battery for Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.LFP Battery for Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.LFP Battery for Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--Engine Starting Battery,etc.
Advantages of LFP battery
LFP Battery Longer battery lifecycle – 6000times , 5 times more than lead acid batteries
RJ LFP Battery Cycle Test
RJ LFP Battery Destructive Test

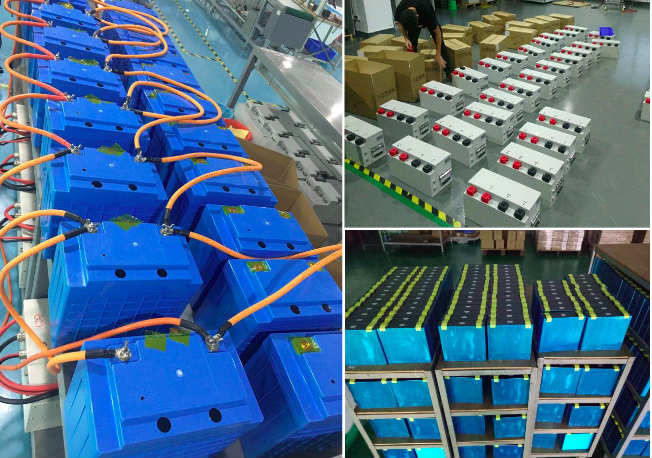

RJ LFP Battery Production Line
RJ LFP Battery Warehouse
