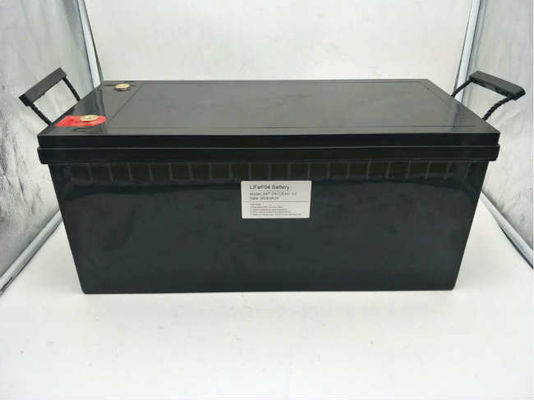

12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    • 12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat
    • 12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat
    • 12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat
    • 12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat
  • 12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    Product Details:

    Place of Origin: China
    Brand Name: RJ
    Certification: MSDS/UN38.3/ROHS/CE/KC
    Model Number: RJ-LFP-12200

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: USD1-100/pcs (FOB Shenzhen)
    Packaging Details: Carton Package
    Delivery Time: 7days
    Payment Terms: TT
    Supply Ability: 100000Sets
    Contact Now
    Detailed Product Description
    Material: LiFepo4 Voltage: 12.8V
    Capacity: 200AH Lifespan: >20years
    LIfe Cycles: >6000times Weight: 25KG

    12v 200ah LiFePO4 Battery Deep Cycle For Solar Energy System EV

    RV Marine Boat



    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat





    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat



    Items Parameter
    Battery Type LiFePO4
    Nominal Voltage 12.8V
    Nominal Capacity 200Ah
    Energy 2.56KWh
    Internal Resistance ≤15mΩ
    Series & Parallel Application up to 4 series 4 parallel connected application
    Limited Charge Voltage 14.6±0.2V
    Floating Charge Voltage 13.8±0.2V
    Charge Method CC/CV
    Discharge Cut-off Voltage 10.0V
    Charge Current 60A
    Continuous Discharge Current 100A
    Pulse Discharge Current (<3s) 200A
    Cycle Life > 6000 cycles
    Dimension (mm) Length:525±2 Width:270±2 Height:232±2
    Weight 28Kg
    Charge Temperature Range 0~75℃
    Discharge Temperature Range -20~75℃
    Recommended Operating Temperature 15~55℃
    Storage Temperature & Humidity Range (Less than 1 month) -20~35℃, 45~75%RH
    Storage Temperature & Humidity Range (Less than 3 months) -10~35℃, 45~75%RH
    Recommended Storage Temperature & Humidity Range 15~35℃,45~75%RH



    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat



    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat



    No. Item Test Item Creterion
    1 Voltage Charging Voltage DC:14.4V CC/CV
    Balance voltage for single cell 3.50±0.025V
    2 Current Balance voltage for single cell 35±5mA
    Current consumption ≤50μA
    Charging current 60A
    Rated continuous discharging current 100A (Peak 200A)
    3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
    Over charge detection delay time 0.7S—1.3S
    Over charge release voltage for single cell 3.550±0.05V
    4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
    Over discharge detection delay time 1.6±0.5S
    Over discharge release voltage for single cell 3.00±0.75V
    5 Over current Protection Over current detection current 500±50A
    Over current detection delay time 1.6±0.5S
    Release condition Cut load
    6 Short Protection Detection condition Exterior short circuit
    Detection delay time 230uS—500uS
    Release condition Cut load
    7 Resistance Protection circuitry (MOSFET) ≤60mΩ
    8 Temperature Operating Temperature Range -40~+85℃
    Storage Temperature Range -40~+125℃





    Note BMS is customizable. More advanced functions available, such as bluetooth, RS485,

    CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off,

    BMS protocol available etc. Contact us for more details!



    Self-heated Function  (Optional)



    To relieve winter range anxiety in some freezing environment, the BMS can bring with

    self heating function. Resistance heating rapidly warms the inside of battery.

    Start heating temperature:≤0°C. Stop heating temperature:≥10°C.

    Can improve battery charge / discharge performance.





    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat





    Bluetooth Function (Optional)



    LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion
    application to deliver more power and extend long life. Also builted with bluetooth function allow
    you to read battery status freely anytime via your smart phone.



    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat







    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat





    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat





    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat

    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat







    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat



    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat





    12v 200ah LiFePO4 Battery deep cycle for Solar system EV RV Marine Boat



    1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

    2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

    3. Flexible customizing and manufacturing accepted.

    4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

    5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

    6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

    7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
