Place of Origin: | China |
Brand Name: | RJ |
Certification: | CE/KC/MSDS/UN38.3/ROHS/IEC62133 |
Model Number: | Lifep04 Battery |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | USD1-10000.00 / PCS (FOB Shenzhen) |
Packaging Details: | Wooden box & Carton Package |
Delivery Time: | 7 days |
Payment Terms: | T/T |
Supply Ability: | 100000 Piece/Pieces per Month |
MATERIAL: | Lifep04 | VOLTAGE: | 12V-144V |
---|---|---|---|
CAPACITY: | 10Ah-1000Ah | WEIGHT: | Flexible |
LIFE CYCLES: | >6000times(100%DOD) | LIFESPAN: | >20years |
LiFeP04 battery
12V-144V, 10Ah Up to 1000Ah On Sale!
Perfect For Solar energy RV Camper EV Scooters Marine
WHY CHOOSE US?
1. Our company is a high-tech enterprise with 16 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
12v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/232 | Warranty | Life Cycles |
12 | 6 | 150mm*95mm*65mm | 1.2KG | Yes | Optional | 5 years | >6000 times |
12 | 8 | 150mm* 95mm* 65mm | 1.3KG | Yes | Optional | 5 years | >6000 times |
12 | 10 | 150mm*95mm*65mm | 2KG | Yes | Optional | 5 years | >6000 times |
12 | 12 | 150mm*95mm*65mm | 2.4KG | Yes | Optional | 5 years | >6000 times |
12 | 14 | 152mm*100mm*95mm | 2.8KG | Yes | Optional | 5 years | >6000 times |
12 | 15 | 181mm*77mm*175mm | 3KG | Yes | Optional | 5 years | >6000 times |
12 | 18 | 181mm*77mm*175mm | 3KG | Yes | Optional | 5 years | >6000 times |
12 | 20 | 181mm*77mm*175mm | 4KG | Yes | Optional | 5 years | >6000 times |
12 | 24 | 181mm*77mm*175mm | 4KG | Yes | Optional | 5 years | >6000 times |
12 | 30 | 223mm*106mm*175mm | 6.2KG | Yes | Optional | 5 years | >6000 times |
12 | 36 | 223mm*106mm*175mm | 8.5KG | Yes | Optional | 5 years | >6000 times |
12 | 40 | 195mm*165mm*175mm | 9KG | Yes | Optional | 5 years | >6000 times |
12 | 50 | 195MM*165MM*175MM | 9.5KG | Yes | Optional | 5 years | >6000 times |
12 | 60 | 240mm*160mm*120mm | 10KG | Yes | Optional | 5 years | >6000 times |
12 | 65 | 240MM*160MM*120MM | 12KG | Yes | Optional | 5 years | >6000 times |
12 | 70 | 240mm*158mm*190mm | 12KG | Yes | Optional | 5 years | >6000 times |
12 | 80 | 320mm*240mm*110mm | 15KG | Yes | Optional | 5 years | >6000 times |
12 | 85 | 330mm*175mm*220mm | 16KG | Yes | Optional | 5 years | >6000 times |
12 | 100 | 330mm*175mm*220mm | 19KG | Yes | Optional | 5 years | >6000 times |
12 | 120 | 330mm*175mm*220mm | 20KG | Yes | Optional | 5 years | >6000 times |
12 | 130 | 330mm*175mm*220mm | 22KG | Yes | Optional | 5 years | >6000 times |
12 | 150 | 330mm*175mm*220mm | 25KG | Yes | Optional | 5 years | >6000 times |
12 | 200 | 485mm*175mm*240mm | 32KG | Yes | Optional | 5 years | >6000 times |
12 | 250 | 525mm*240mm*215mm | 44KG | Yes | Optional | 5 years | >6000 times |
12 | 300 | 485mm*175mm*240mm | 45KG | Yes | Optional | 5 years | >6000 times |
12 | 400 | 525mm*275mm*220mm | 55KG | Yes | Optional | 5 years | >6000 times |
12 | 600 | 800mm*500mm*160mm | 78KG | Yes | Optional | 5 years | >6000 times |
12 | 1000 | 800mm*500mm*350mm | 125KG | Yes | Optional | 5 years | >6000 times |
24v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
24 | 10 | 181*77*175mm | 4.5kg | 5years | Optional | 5years | >6000times |
24 | 20 | 223*106*175mm | 9kg | 5years | Optional | 5years | >6000times |
24 | 30 | 195*165*175mm | 12kg | 5years | Optional | 5years | >6000times |
24 | 40 | 195*165*175mm | 15kg | 5years | Optional | 5years | >6000times |
24 | 50 | 330*175*220mm | 18.5kg | 5years | Optional | 5years | >6000times |
24 | 60 | 330*175*220mm | 20kg | 5years | Optional | 5years | >6000times |
24 | 70 | 330*175*220mm | 22kg | 5years | Optional | 5years | >6000times |
24 | 80 | 407*175*235mm | 24kg | 5years | Optional | 5years | >6000times |
24 | 100 | 485*175*240mm | 32kg | 5years | Optional | 5years | >6000times |
24 | 130 | 545*240*215mm | 36kg | 5years | Optional | 5years | >6000times |
24 | 150 | 525*275*220mm | 48kg | 5years | Optional | 5years | >6000times |
24 | 200 | 525*275*220mm | 55kg | 5years | Optional | 5years | >6000times |
24 | 250 | 800*500*160mm | 68kg | 5years | Optional | 5years | >6000times |
24 | 400 | 800*500*160mm | 110kg | 5years | Optional | 5years | >6000times |
36v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
36 | 10 | 165*125*175mm | 6.5kg | Yes | Optional | 5years | >6000times |
36 | 20 | 240*158*190mm | 9kg | Yes | Optional | 5years | >6000times |
36 | 30 | 195*165*175mm | 14kg | Yes | Optional | 5years | >6000times |
36 | 40 | 330*175*220mm | 18kg | Yes | Optional | 5years | >6000times |
36 | 50 | 330*175*220mm | 22kg | Yes | Optional | 5years | >6000times |
36 | 60 | 485*175*240mm | 30kg | Yes | Optional | 5years | >6000times |
36 | 70 | 525*275*220mm | 34kg | Yes | Optional | 5years | >6000times |
36 | 80 | 525*275*220mm | 40kg | Yes | Optional | 5years | >6000times |
36 | 100 | 522*270*215mm | 48kg | Yes | Optional | 5years | >6000times |
36 | 200 | 530*495*425mm | 85kg | Yes | Optional | 5years | >6000times |
48v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
48 | 10 | 195*165*175mm | 8kg | Yes | Optional | 5years | >6000times |
48 | 20 | 240*158*190mm | 14kg | Yes | Optional | 5years | >6000times |
48 | 30 | 330*175*220mm | 20kg | Yes | Optional | 5years | >6000times |
48 | 40 | 330*175*220mm | 28kg | Yes | Optional | 5years | >6000times |
48 | 50 | 522*237*215mm | 33kg | Yes | Optional | 5years | >6000times |
48 | 60 | 525*240*215mm | 40kg | Yes | Optional | 5years | >6000times |
48 | 75 | 522*270*215mm | 42kg | Yes | Optional | 5years | >6000times |
48 | 80 | 525*273*225mm | 48kg | Yes | Optional | 5years | >6000times |
48 | 100 | 350*540*160mm | 55kg | Yes | Optional | 5years | >6000times |
48 | 200 | 800*500*160mm | 110kg | Yes | Optional | 5years | >6000times |
48 | 300 | 800*500*350mm | 150kg | Yes | Optional | 5years | >6000times |
48 | 400 | 800*500*350mm | 210kg | Yes | Optional | 5years | >6000times |
60v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
60 | 10 | 195*165*175mm | 9.5kg | Yes | Optional | 5years | >6000times |
60 | 20 | 330*175*220mm | 19kg | Yes | Optional | 5years | >6000times |
60 | 30 | 407*175*235mm | 25kg | Yes | Optional | 5years | >6000times |
60 | 40 | 407*175*235mm | 28kg | Yes | Optional | 5years | >6000times |
60 | 50 | 525*240*215mm | 44kg | Yes | Optional | 5years | >6000times |
60 | 120 | 420*360*550mm | 84kg | Yes | Optional | 5years | >6000times |
60 | 200 | 1000*600*182mm | 156kg | Yes | Optional | 5years | >6000times |
72v LiFepo4 Battery Pack | |||||||
Voltage(V) | Capacity(AH) | Size | Weight | With BMS | Bluetooth/RS485/RS232 | Warranty | Life Cycles |
72 | 10 | 195*165*175mm | 13kg | Yes | Optional | 5years | >6000times |
72 | 20 | 330*175*220mm | 20kg | Yes | Optional | 5years | >6000times |
72 | 30 | 485*175*240mm | 32kg | Yes | Optional | 5years | >6000times |
72 | 40 | 525*240*215mm | 43kg | Yes | Optional | 5years | >6000times |
72 | 50 | 505*273*225mm | 48kg | Yes | Optional | 5years | >6000times |
72 | 60 | 350*540*160mm | 50kg | Yes | Optional | 5years | >6000times |
72 | 70 | 350*540*160mm | 58kg | Yes | Optional | 5years | >6000times |
72 | 100 | 600*200*300mm | 50kg | Yes | Optional | 5years | >6000times |
72 | 200 | 179*1448*282mm | 220kg | Yes | Optional | 5years | >6000times |
72 | 300 | 800*400*300mm | 260kg | Yes | Optional | 5years | >6000times |
3.2V LIFEPO4 BATTERY CELL | ||||
Type Lifepo4 | Dimensions | Weight | Cycles @ 100%DOD | Warranty |
3.2V 10AH | D17*W79*H135MM | 0.55KG | >6000times | 5years |
3.2V 25AH | D20*W100*H140MM | 0.95KG | >6000times | 5years |
3.2V 40AH | D26*W135*H170MM | 1.33KG | >6000times | 5years |
3.2V 42AH | D27*W147*H147MM | 1.33KG | >6000times | 5years |
3.2V 50AH | D32*W173*H127MM | 1.42KG | >6000times | 5years |
3.2V 60AH | D32*W174*H148MM | 1.65KG | >6000times | 5years |
3.2V 75AH | D48*W174*H128MM | 2.12KG | >6000times | 5years |
3.2V 80AH | D48*W173*H126MM | 2.12KG | >6000times | 5years |
3.2V 86AH | D48*W173*H126MM | 2.12KG | >6000times | 5years |
3.2V 92AH | D29*W174*H203MM | 2.10KG | >6000times | 5years |
3.2V100AH | D34*W200*H168MM | 2.78KG | >6000times | 5years |
3.2V 120AH | D48*W173*H166MM | 2.84KG | >6000times | 5years |
3.2V 140AH | D46*W200*H168MM | 3.10KG | >6000times | 5years |
3.2V 160AH | D72*W174*H138MM | 3.46KG | >6000times | 5years |
3.2V 176AH | D54*W173*H200MM | 3.82KG | >6000times | 5years |
3.2V 200AH | D71*W173*H166MM | 5.00KG | >6000times | 5years |
3.2V 240AH | D71*W173*H200MM | 5.00KG | >6000times | 5years |
3.2V 271AH | D71*W173*H200MM | 5.40KG | >6000times | 5years |
Application of Lifep04 battery
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--Engine Starting Battery,etc.
Advantages of Lifep04 battery
Longer battery life – 6000times life cycle , 5 times more than lead acid batteries

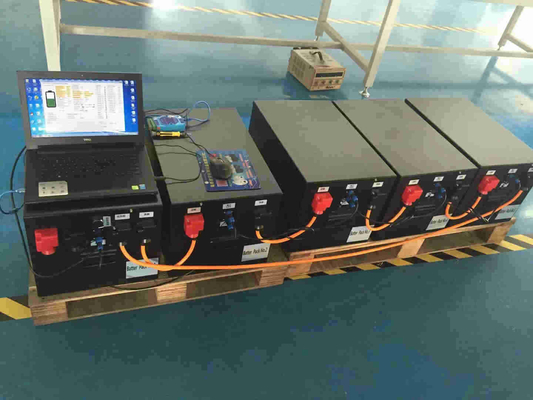

RJ Lifep04 Battery Cycle Test
RJ Lifep04 Battery Destructive Test

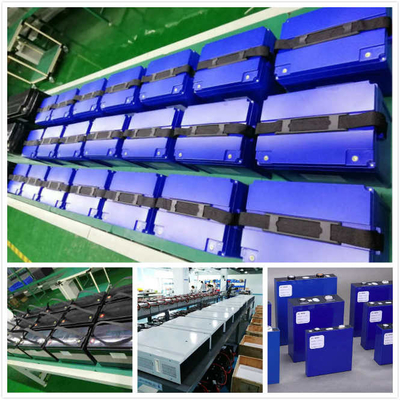

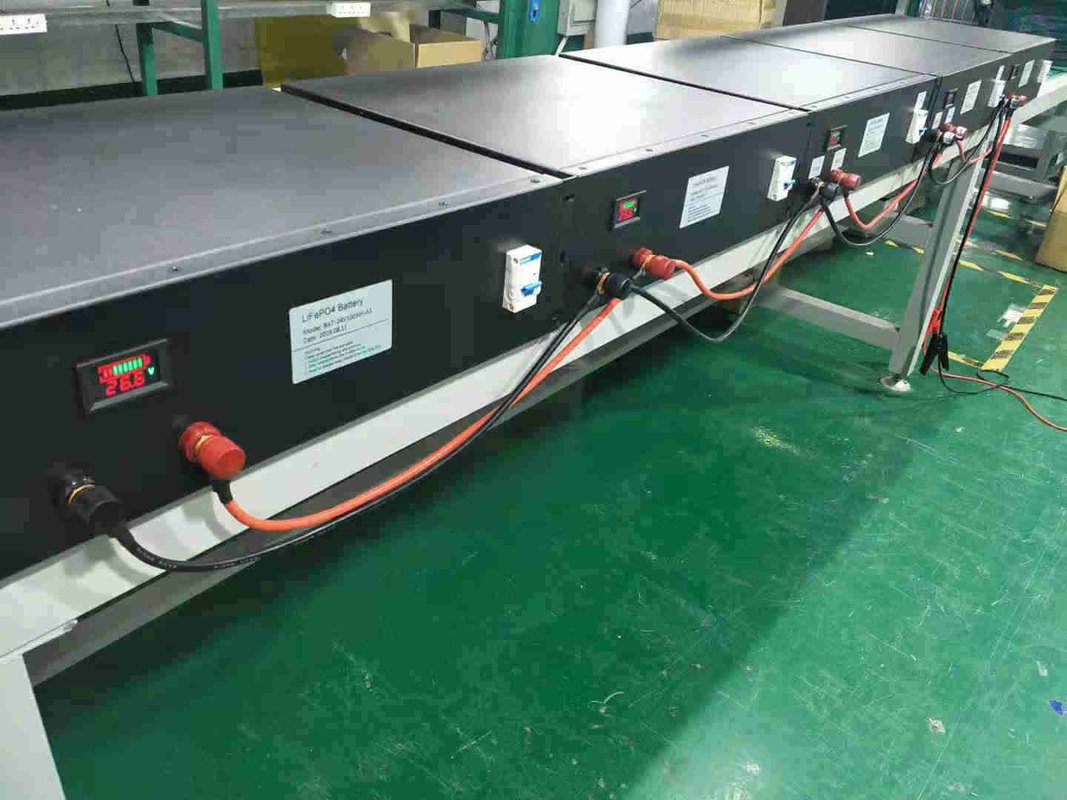

RJ Lifep04 Battery Production Line
RJ Lifep04 Battery Warehouse
