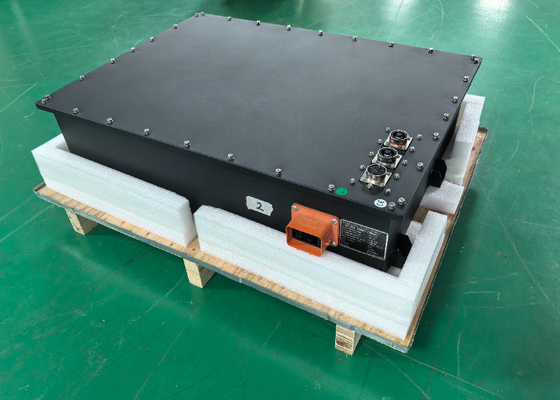

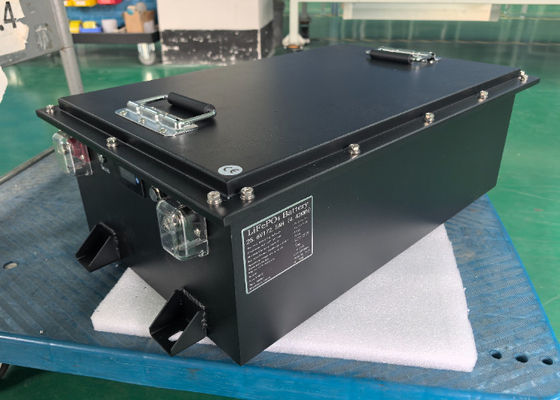

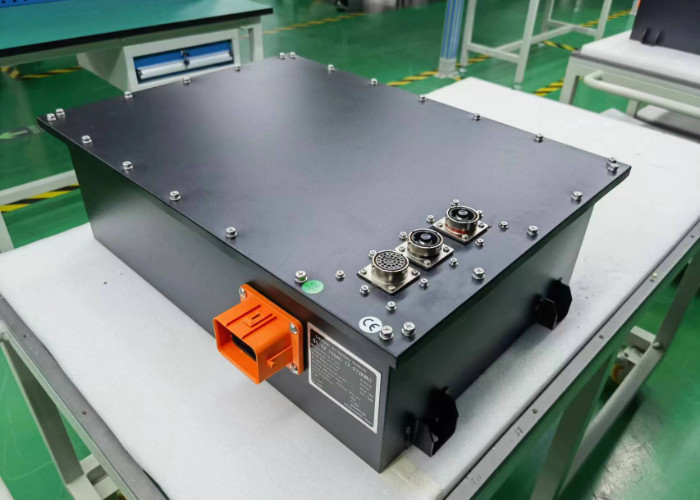

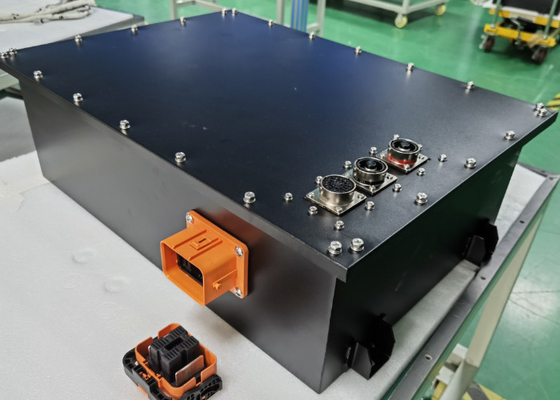

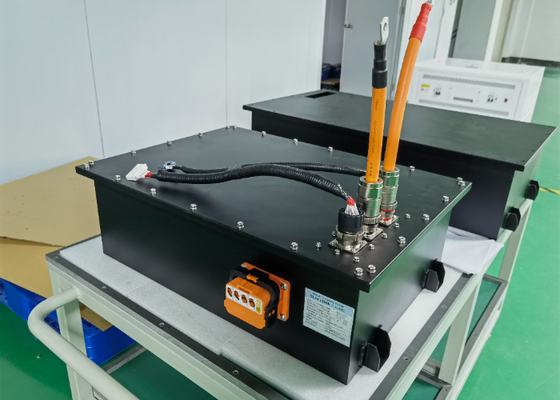

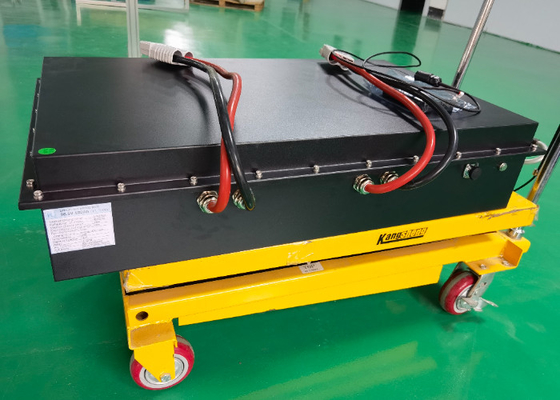

RJ TECH 24V 36V 48V 50AH 72V 96V 100AH 200Ah ATV UTV Racing Electric Scooter

Product Details:

Place of Origin:	China
Brand Name:	RJ TECH
Certification:	CE/UL/IEC/UN38.3/
Model Number:	RJ-LFP-AGV-Series

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD140/kWH (FOB Shenzhen)
Packaging Details:	Wooden packing+Tray
Delivery Time:	7days
Payment Terms:	TT
Supply Ability:	100000pcs

Contact Now

Detailed Product Description

Material:	Lithium Battery (LiFePO4)	Capacity:	50AH 80AH 100AH 150AH
Cycles:	8000times	Warranty:	5/10 Years
Voltage:	24V 36V 48V	Communication:	CANBus/RS485 ModBus/UART/RS232

8000CYCLES - 5/10YEARS WARRANTY - FACTORY PRICE

Lithium ATV UTV Racing batteries

RJ TECH electric tow tractor battery packs adopts CATL prismatic batteries that

are generally supplied for commercial vehicles,

Features

More than 8000 Cycles
Battery modules available for parallel and series for higher voltage and capacity
BMS Passive/Active cell balance funciton
IP65, IP67, water proof, dust proof, Temperature monitoring
Customization for Size and Discharge and charge rate
Free of Maintenance, contains no poisonous material
No leakage, no hazardous chemistry
Quick delivery
Lighter in weight, smaller in size to save space.
Powerfull to increase robust operation
Fast charging and high power discharge rate available
No need to add water nor worry about maintenance.

RJ TECH 24V 36V 48V 50AH 72V 96V 100AH 200Ah ATV UTV Racing Electric Scooter

Other product Range

Voltage	Capacity	Charge	Discharge	Weight	Size	Lifecycle
24V	50AH	50A	50A	14kg	Customizable	>9000times
24V	100AH	100A	100A	24kg	Customizable	>9000times
24V	200AH	200A	200A	48kg	Customizable	>9000times
24V	300AH	200A	200A	68kg	Customizable	>9000times
36V	50AH	50A	50A	18kg	Customizable	>9000times
36V	100AH	100A	100A	32kg	Customizable	>9000times
36V	200AH	200A	200A	68kg	Customizable	>9000times
36V	300AH	200A	200A	98kg	Customizable	>9000times
48v	200ah	200A	200A	88KG	Customizable	>9000times
48v	400ah	300A	300A	170KG	Customizable	>9000times
48v	600ah	400A	400A	260KG	Customizable	>9000times
48v	800ah	600A	600A	320KG	Customizable	>9000times
48v	1000ah	600A	600A	450KG	Customizable	>9000times
72v	200ah	200A	200A	65KG	Customizable	>9000times
72v	500ah	500A	500A	160KG	Customizable	>9000times
72v	800ah	500A	500A	260KG	Customizable	>9000times
72v	1000ah	800A	800A	320KG	Customizable	>9000times
80v	300ah	300A	300A	160KG	Customizable	>9000times
80v	600ah	600A	600A	320KG	Customizable	>9000times
80v	800ah	800A	800A	480KG	Customizable	>9000times
80v	1000ah	800A	800A	640KG	Customizable	>9000times
220v	200ah	200A	200A	400KG	Customizable	>9000times

Builtin Smart BMS Spec

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Charge Over current protection	Charge Over current detection current	1~100A
Charge Over current protection	Charge Over current detection delay time	0.02S~ 6S
Discharge Over current protection	Discharge Over current detection current	1~600A
Discharge Over current protection	Discharge Over current detection delay time	0.02S~ 6S
Short protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Currentconsumption	Current consume in normal operation	1.5mA Type
Currentconsumption	Current consume in sleep operation	2 uA Type
