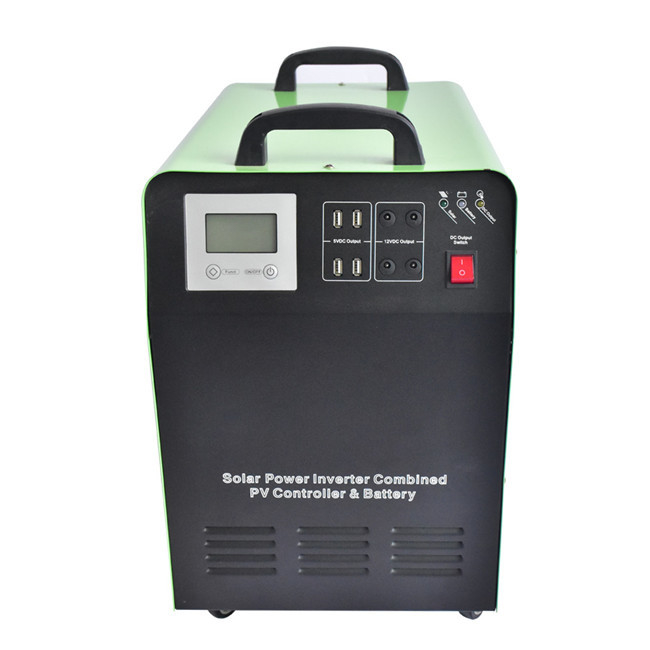

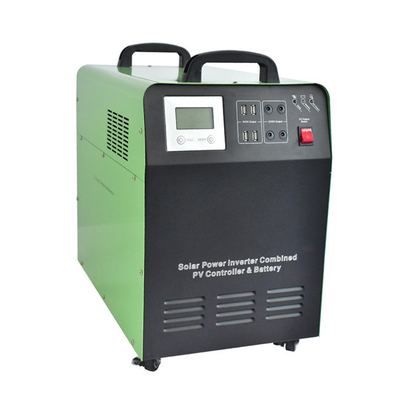

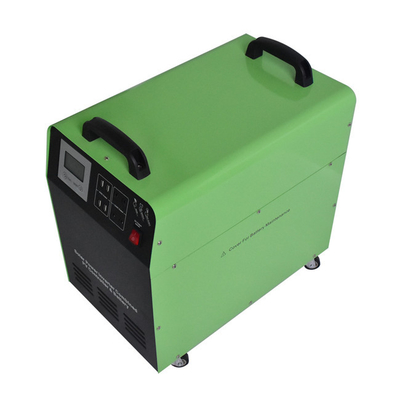

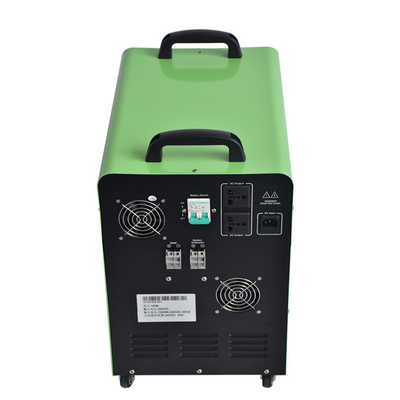

Solar station 1000W off grid solar system home smart power generator lifepo4 battery for Camper RV

Contact Now

Detailed Product Description

Solar station 1000W off grid solar system home smart power generator

lifepo4 battery for Camper RV

WHY CHOOSE US?

1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.

Item		Specification
Model		1000W
Model		1000W
Battery rated voltage(VDC)		24V
Inverter	Rated power(W)	1000
	Input voltage range(VAC)	160-275VAC
	Input frequency(Hz)	45-65
	Output voltage(VAC)	220
	Output frequency(Hz)	50/60
	Output wave	Pure Sine Wave
	Specification of built-in battery	2*55AH/12V
	Communication	RS232
Solar input	Max. PV voltage(VDC)	≤50
	Range of charging voltage(VDC)	20-50
	Rated charge current(A)	30
	Voltage for overcharge protection(VDC)	28.4
	Voltage for overcharge recovery(VDC)	28
	Voltage for floating charge(VDC)	27.4
DC output	Voltage for high voltage protection(VDC)	32
	High voltage recovery voltage(VDC)	30.4
	Low voltage recovery voltage(VDC)	25.2
	Low voltage protection voltage(VDC)	22
	5VDC USB output	2pcs/MAX 2A
	12VDC output ports	2pcs/MAX 2A
Heat dissipation/Cooling		Temperature control by intelligent exhaust fan
Operating ambient temperature		-20 - +50℃
Storage ambient temperature		-25 - +55℃
Operating/Storage ambient		0-90% No condensation
External size:WDH(mm)		423260453
Package size:WDH(mm)		520370520

Built-In BMS

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Charge Over current protection	Charge Over current detection current	1~100A
Charge Over current protection	Charge Over current detection delay time	0.02S~ 6S
Discharge Over current protection	Discharge Over current detection current	1~600A
Discharge Over current protection	Discharge Over current detection delay time	0.02S~ 6S
Short protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Currentconsumption	Current consume in normal operation	1.5mA Type
Currentconsumption	Current consume in sleep operation	2 uA Type

RJ Battery Cycle Test

RJ Battery Destructive Test

RJ Battery Application
