|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Price:||USD1-100/pcs (FOB Shenzhen)|
|Packaging Details:||Carton Package|

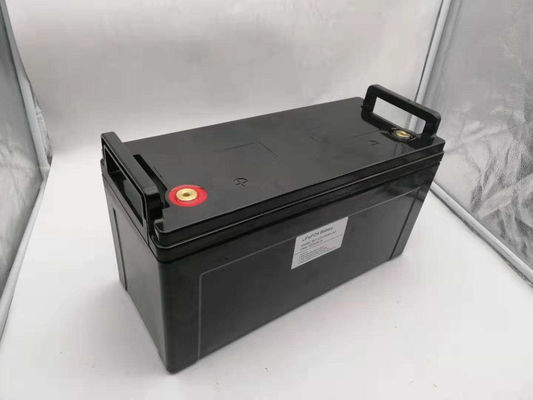

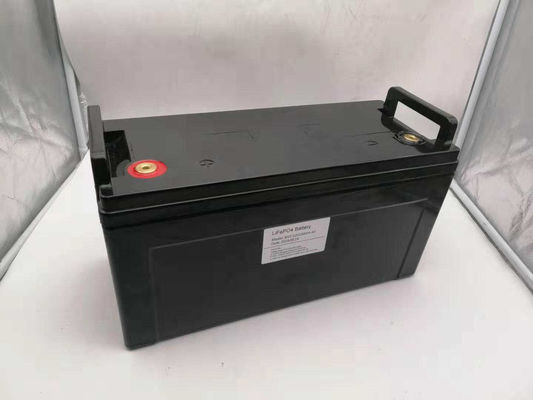

Rechargeable 12v 150ah LiFePO4 Battery High Density For Off Grid
|Series & Parallel Application||up to 4 series 10 parallel connected application|
|Limited Charge Voltage||14.6±0.2V|
|Floating Charge Voltage||13.8±0.2V|
|Discharge Cut-off Voltage||10.0V|
|Charge Current||40A (Customizable)|
|Continuous Discharge Current||100A (Customizable)|
|Pulse Discharge Current||200A (Peak)|
|Cycle Life||> 6000 cycles|
405mm*207mm*170mm (handle added 30mm)
|Charge Temperature Range||0~75℃|
|Discharge Temperature Range||-20~75℃|
|Storage Temperature & Humidity Range (Less than 1 month)||-20~35℃, 45~75%RH|
|Storage Temperature & Humidity Range (Less than 3 months)||-10~35℃, 45~75%RH|
|Recommended Storage Temperature & Humidity Range||15~35℃,45~75%RH|
|1||Voltage||Charging Voltage||DC:14.4V CC/CV|
|Balance voltage for single cell||3.50±0.025V|
|2||Current||Balance voltage for single cell||35±5mA|
|Rated continuous discharging current||100A (Peak 200A)|
|3||Over charge Protection||Over charge detection voltage for single cell||3.65V±0.025V|
|Over charge detection delay time||0.7S—1.3S|
|Over charge release voltage for single cell||3.550±0.05V|
|4||Over discharge Protection||Over discharge detection voltage for single cell||2.50V±0.07V|
|Over discharge detection delay time||1.6±0.5S|
|Over discharge release voltage for single cell||3.00±0.75V|
|5||Over current Protection||Over current detection current||500±50A|
|Over current detection delay time||1.6±0.5S|
|Release condition||Cut load|
|6||Short Protection||Detection condition||Exterior short circuit|
|Detection delay time||230uS—500uS|
|Release condition||Cut load|
|7||Resistance||Protection circuitry (MOSFET)||≤60mΩ|
|8||Temperature||Operating Temperature Range||-40~+85℃|
|Storage Temperature Range||-40~+125℃|
Note BMS is customizable. More advanced functions available, such as bluetooth, RS485,
CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off,
BMS protocol available etc. Contact us for more details!
Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
