9000CYCLES - 20YEARS WARRANTY - FACTORY PRICE
Product Features:
Compatibility
SMA/Victron/Sol-ark/Deye/Growatt/Goodwe/Schneider/Solis/SolaX/Sofar/Voltronic/East/Kehua/Kostar/Studer/sunsynk/Luxpower
Top Quality & Powerful
CATL prismatic cells, brand new, grade A
Outstanding >9000cycles @ 100%DOD
Excellent 20years full warranty

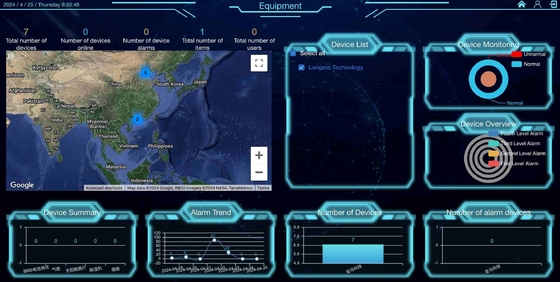

Plug & Play, WIFI APP WEB Monitor
Safe & Reliable
UL1973 UL9540 UL9540A IEC62619 UL1741
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
| No |
Items |
Value |
Remark |
| Cell unit |
| 1 |
Battery types and materials |
LiFePO4 |
|
| 2 |
Rated voltage/capacity |
3.2V 314Ah |
CATL |
| 3 |
Single battery voltage range |
2.5V～3.65V |
|
| 4 |
Single battery weight |
5Kg |
|
| 5 |
Battery internal resistance |
≤ 0.6mΩ |
|
| 6 |
Battery Cell Size |
72*174*204mm(L*W*H) |
|
| Battery Module |
| 1 |
Rated voltage |
51.2V |
|
| 2 |
Rated capacity |
314Ah |
|
| 3 |
Battery pack voltage range |
44.0V～58.4V |
|
| 4 |
Battery energy |
16kWh |
|
| 5 |
Combination |
1P32S |
|
| 6 |
Insulation resistance test value |
≤20MΩ |
|
| 7 |
Charging temperature |
0 ~ 45℃； |
|
| 8 |
Discharging Temperature |
-20 ~ 60℃ |
|
| 9 |
Standard charging current |
≤200A |
|
| 10 |
Standard discharge current |
≤200A |
|
| 11 |
Net weight |
~130KG |
|
| 12 |
Battery size |
630*500*850mm |
|
| 13 |
Installation Method |
Wall mounted |
|
| 14 |
Communication |
RS485/CAN/RS232 |
|
