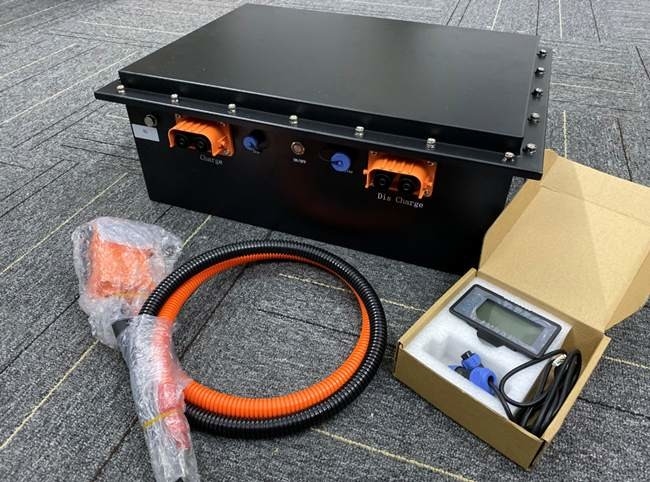

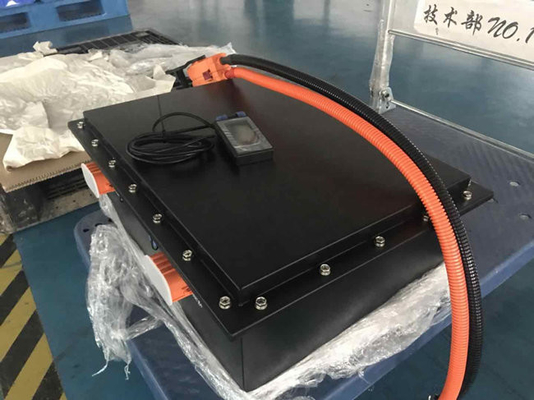

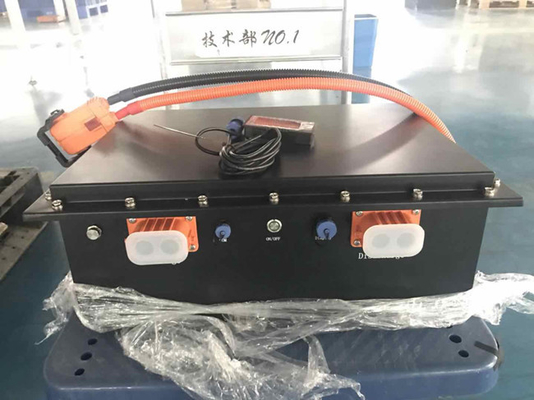

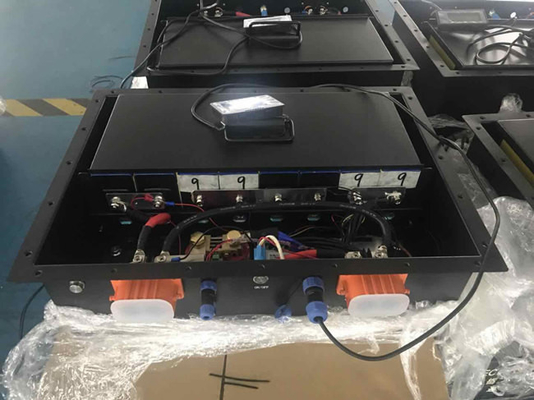

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

Product Details:

Place of Origin:	China
Brand Name:	RJ
Certification:	KC/MSDS/UN38.3/ROHS
Model Number:	RJ-LFP-72150-GW

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD1-10000.00 / PCS (FOB Shenzhen)
Packaging Details:	Wooden Package
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

Detailed Product Description

MATERIAL:	LiFepo4	VOLTAGE:	76.8V
CAPACITY:	150AH	LIFE CYCLES:	6000cycles
LIFESPAN:	>20years	Weight:	90KG

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid

Replacement Powerful Fast Charging

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

Features

1. RJ Lithium Golf cart battery are designed to replace the lead-acid battery,

which are available for drop-in replacement in the Club Car and EZ-GO etc. vehicles nicely.

2. Smaller in size, 50% Light in Weight, but 200% More Powerful

3. Quick charging time, up to 2hours

4. Increase greatly in mileage up to 100mile

5. Long life cycle>6000times, designed lifespan>20years

6. Factory warranty 5years

7. Bluetooth, RS485, remote LCD screen Available

8. Customization available for dealers and end-cosumers

9. Waterproof matching Powerful LiFepo4 Golf cart battery Charger available

10. Factory Price and price gradient available for dealers

11. More model available, 50AH/120AH/150AH/160AH/200AH etc, Contact us get more details!

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

Items	Parameter
Battery Type	LiFePO4
Nominal Voltage	76.8V
Nominal Capacity	150Ah
Energy	11520Wh
Internal Resistance	≤50mΩ
Limited Charge Voltage	87.6V
Charge Method	CC/CV
Discharge Cut-off Voltage	60V
Charge Current	100A
Continuous Discharge Current	100A
Pulse Discharge Current	200A (Peak)
Depth of Discharge	100%DOD
Reserve Minutes @ 150A	60 min
Reserve Minutes @ 50A	150min
Cycle Life	6000 cycles
Communication functions	Bluetooth/RS485 Optional
Temperature protection	Available
Auto heating function	Optional
Dimension	Customized For Club Car Cushman EZGO Yamaha Star Car Polaris etc.
Weight	90Kg
Charge Temperature Range	0~55℃
Discharge Temperature Range	-20~65℃
Recommended Operating Temperature	15~55℃
Series Connection	Customized
Paralell Connection	Customized

Built-In BMS

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Charge Over current protection	Charge Over current detection current	1~100A
Charge Over current protection	Charge Over current detection delay time	0.02S~ 6S
Discharge Over current protection	Discharge Over current detection current	1~600A
Discharge Over current protection	Discharge Over current detection delay time	0.02S~ 6S
Short protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Currentconsumption	Current consume in normal operation	1.5mA Type
Currentconsumption	Current consume in sleep operation	2 uA Type

RJ Battery Cycle Test

RJ Battery Destructive Test

RJ Battery Application

RJ Battery Warehouse

WHY CHOOSE US?

1. Our company is a high-tech enterprise, 15 years’ experience in R&D battery.

2. With a total span of 20000 square meters, production capacity exceed 600,000,000 Ah

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers

and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
