Place of Origin: | China |
Brand Name: | RJ |
Certification: | MSDS/UN38.3/ROHS/CE/KC |
Model Number: | RJ-LFP-1280 |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | USD1-100/pcs (FOB Shenzhen) |
Packaging Details: | Carton Package |
Delivery Time: | 7days |
Payment Terms: | TT |
Supply Ability: | 100000Sets |
Material: | LiFepo4 | Voltage: | 12.8V |
---|---|---|---|
Capacity: | 80AH | Lifespan: | >20years |
LIfe Cycles: | >6000times | Weight: | 12.5KG |

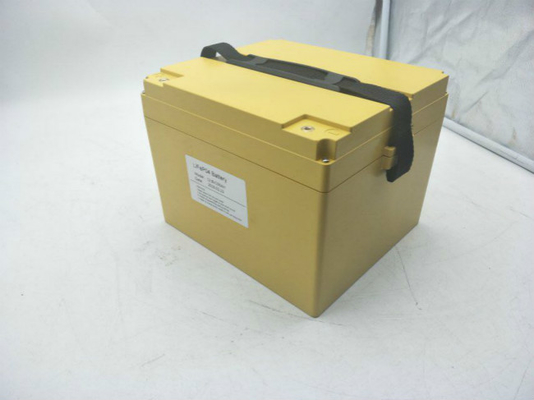

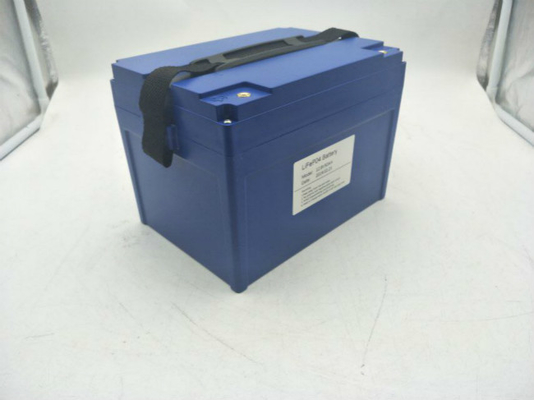

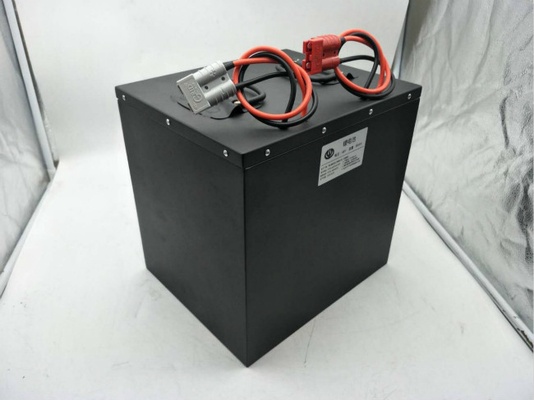

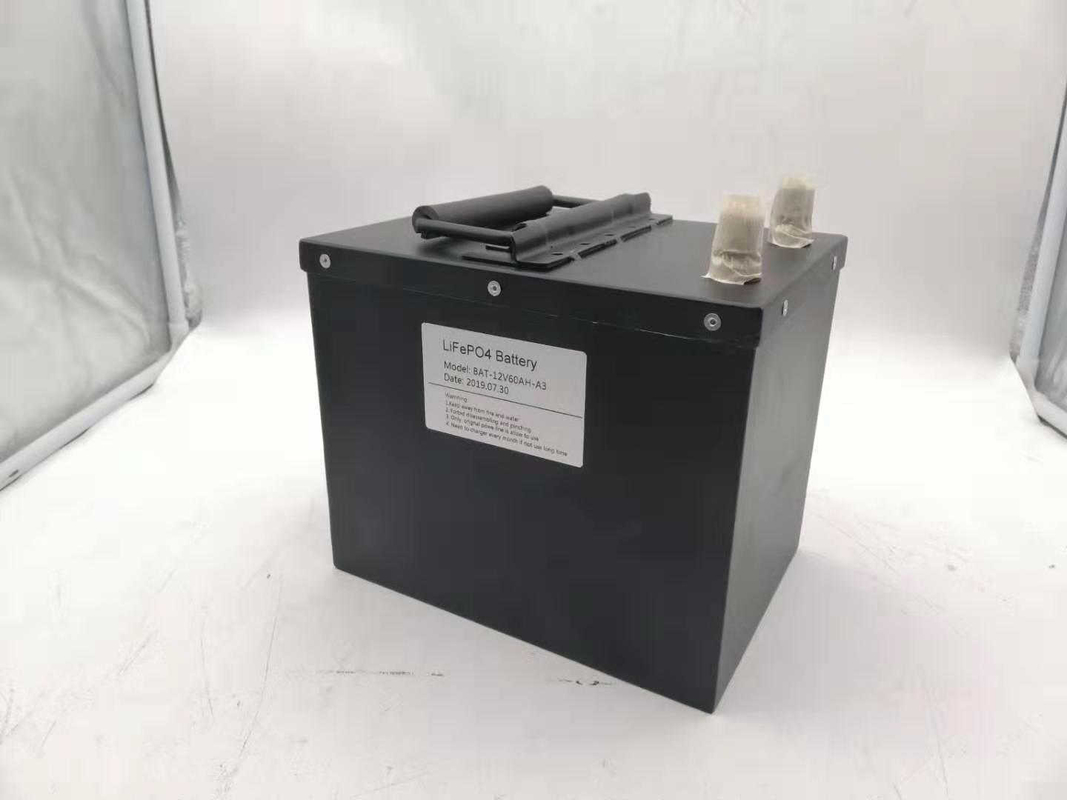

12v 80ah Deep cycle lifepo4 lithium battery pack li-ion battery For Solar Energy Storage
WHY CHOOSE US?
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 12.8V |
Nominal Capacity | 80Ah |
Energy | 1024Wh |
Limited Charge Voltage | 14.6±0.2V |
Floating Charge Voltage | 13.8±0.2V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 10.0V |
Standard Charge Current | 60A |
Standard Continuous Discharge Current | 60A |
Max. Continuous Discharge Current (<10min) | 120A |
Cycle Life | > 6000 cycles |
Dimension (mm) | Length: 232±2 Width: 171±2 Height: 215±2 |
Weight | 12.5±0.2Kg |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~60℃ |
Recommended Operating Temperature | 15~35℃ |
Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
Built-in BMS
No. | Item | Test Item | Creterion | |
1 | Voltage | Charging Voltage | DC:14.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 60A | |||
Rated continuous discharging current | 60A(Peak 120A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+125℃ |
BlueTooth APP Monitor
(Optional)
Advantages:
RJ Battery Cycle Test
RJ Battery Destructive Test
RJ Battery Application
RJ Battery Warehouse
