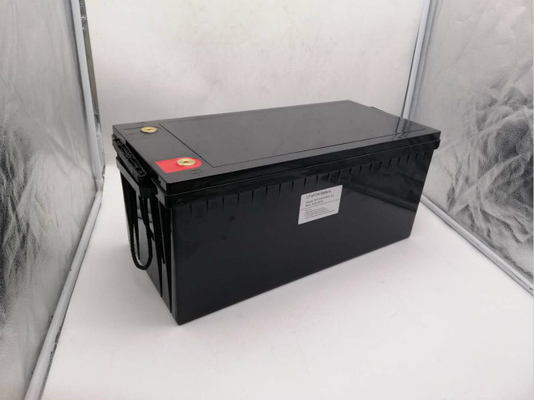

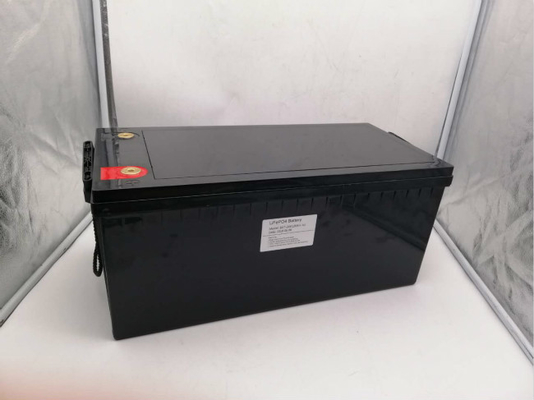

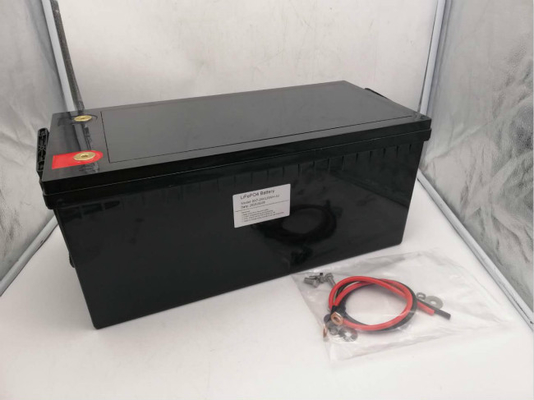

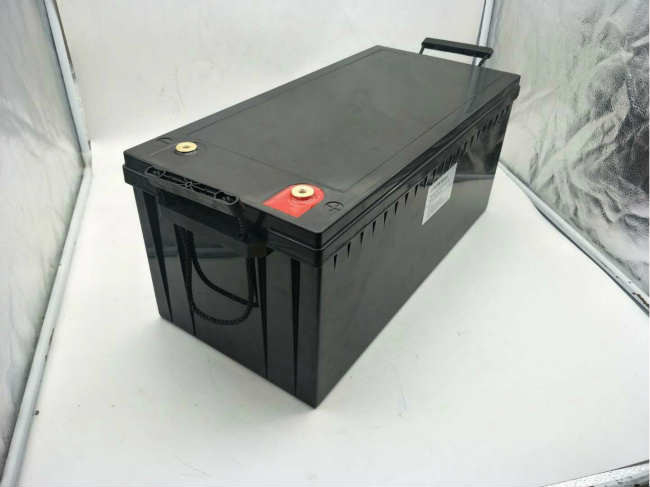

12v 200ah Bluetooth APP control deep cycle lifepo4 lithium ion battery Energy Storage

12v 200ah Bluetooth APP control deep cycle lifepo4 lithium ion battery Energy Storage

    • 12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage
    • 12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage
    • 12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage
    • 12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage
  • 12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage

    Product Details:

    Place of Origin: China
    Brand Name: RJ
    Certification: MSDS/UN38.3/ROHS/CE/UL/KC
    Model Number: RJ-LFP-12200

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: USD1-100/pcs (FOB Shenzhen)
    Packaging Details: Carton Package
    Delivery Time: 7days
    Payment Terms: TT
    Supply Ability: 100000Sets
    Contact Now
    Detailed Product Description
    Material: LiFepo4 Voltage: 12.8V
    Capacity: 200AH Lifespan: >20years
    LIfe Cycles: >6000times Weight: 28KG

    Bluetooth APP control deep cycle lifepo4 12v 200ah lithium ion battery Energy Storage



    12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage



    WHY CHOOSE US?



    1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

    2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

    3. Flexible customizing and manufacturing accepted.

    4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

    5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

    6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

    7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.



    12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage



    Items Parameter
    Battery Type LiFePO4
    Nominal Voltage 12.8V
    Nominal Capacity 200Ah
    Energy 2.56KWh
    Internal Resistance ≤15mΩ
    Series & Parallel Application up to 4 series 4 parallel connected application
    Limited Charge Voltage 14.6±0.2V
    Floating Charge Voltage 13.8±0.2V
    Charge Method CC/CV
    Discharge Cut-off Voltage 10.0V
    Charge Current 60A
    Continuous Discharge Current 60A
    Pulse Discharge Current (<3s) 120A
    Cycle Life > 6000 cycles
    Dimension (mm) Length:525±2 Width:270±2 Height:232±2
    Weight 28Kg
    Charge Temperature Range 0~45℃
    Discharge Temperature Range -20~60℃
    Recommended Operating Temperature 15~35℃
    Self-Discharge Rate (Residual capacity) ≤3%/month; ≤15%/years
    Self-Discharge Rate (Reversible capacity) ≤1.5%/month; ≤8%/years
    Storage Temperature & Humidity Range (Less than 1 month) -20~35℃, 45~75%RH
    Storage Temperature & Humidity Range (Less than 3 months) -10~35℃, 45~75%RH
    Recommended Storage Temperature & Humidity Range 15~35℃,45~75%RH



    12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage







                                         Built-in BMS



    No. Item Test Item Creterion
    1 Voltage Charging Voltage DC:14.4V CC/CV
    Balance voltage for single cell 3.50±0.025V
    2 Current Balance voltage for single cell 35±5mA
    Current consumption ≤50μA
    Charging current 60A
    Rated continuous discharging current 60A (Peak 120A)
    3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
    Over charge detection delay time 0.7S—1.3S
    Over charge release voltage for single cell 3.550±0.05V
    4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
    Over discharge detection delay time 1.6±0.5S
    Over discharge release voltage for single cell 3.00±0.75V
    5 Over current Protection Over current detection current 500±50A
    Over current detection delay time 1.6±0.5S
    Release condition Cut load
    6 Short Protection Detection condition Exterior short circuit
    Detection delay time 230uS—500uS
    Release condition Cut load
    7 Resistance Protection circuitry (MOSFET) ≤60mΩ
    8 Temperature Operating Temperature Range -40~+85℃
    Storage Temperature Range -40~+125℃





    12v 200ah Bluetooth APP control deep cycle lifepo4  lithium ion battery Energy Storage







                                       BlueTooth APP Monitor







    Advantages:



    • Longer battery life – 6000times life cycle , 5 times more than lead acid batteries
    • Low self-discharge
    • Free of charge memory
    • Steady discharge and charge performance.
    • Outstanding thermal stability
    • Wide temperature performance
    • Short circuit protection
    • Over charge and over discharge protection
    • Over current protection
    • Easy carrying and installation - can be carried and installed in any direction
    • Fast charging - about 4~6 hours to be fully charged
    • Lighter weight - 1/2~1/4 in weight compared to LA batteries
    • Require no change to a lead acid battery charging system
    • Better safety - mild warm, no explosion and firing, free of leakage
    • Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals, no gasses during charge, free of leakage and pollution
