Place of Origin: | China |
Brand Name: | RJ |
Certification: | MSDS/UN38.3/ROHS/CE/KC |
Model Number: | RJ-LFP-48100-BG |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | USD1-100/pcs (FOB Shenzhen) |
Packaging Details: | Carton Package |
Delivery Time: | 7days |
Payment Terms: | TT |
Supply Ability: | 100000Sets |
Material: | LiFepo4 | Voltage: | 51.2V |
---|---|---|---|
Capacity: | 100AH | Lifespan: | >20years |
LIfe Cycles: | >6000times | Weight: | 43KG |

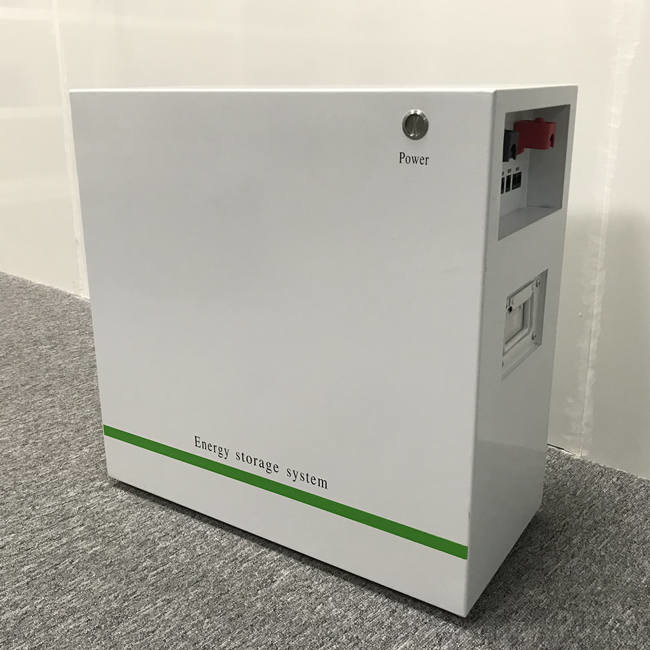

48v 100ah lifepo4 RV battery with BMS lithium iron phosphate for
Cavravan Motorhome Camper
Items | Parameter |
Battery Type | LiFePO4 |
Rated Voltage | 51.2V |
Rated Capacity | 100Ah |
Energy | 5120KWh |
Limited Charge Voltage | 58.4V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 40V |
Recommend Charge Current | <30A |
Continuous Discharge Current | 100A |
Pulse Discharge Current | 200A (Peak) |
Cycle Life | > 6000 cycles |
Communication functions | Bluetooth/RS485/CANBUS Optional |
Temperature protection | Available |
Auto heating function | Optional |
Built in Battery Management System | Internal |
Automatic Short Circuit Protection | Instant |
Internal Cell Thermal Safety Fuse | Yes |
Automatic Internal Cell Balancing | Yes |
Automatic Fault Recovery | Yes |
Dimension | Customize |
Weight | 45kg |
Charge Temperature Range | 0~60℃ |
Discharge Temperature Range | -20~70℃ |
Recommended Operating Temperature | 15~45℃ |
Series Connection | Customized |
Parallel Connection | Customized |
No. | Item | Test Item | Criterion | |
1 | Voltage | Charging Voltage | DC:58.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 100A | |||
Rated continuous discharging current | 100A (Peak 200A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 300A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Communication | RS485/RS232/CANBUS/Bluetooth | Optional | |
8 | Auto heating | Auto start self heating against extreme cold weather | Optional | |
9 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+85℃ |
Note BMS is customizable. More advanced functions available, such as bluetooth, RS485,
CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off,
BMS protocol available etc. Contact us for more details!
Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
