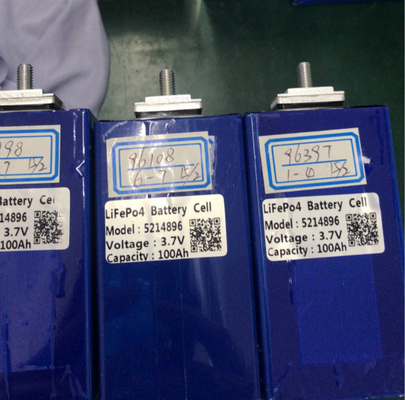

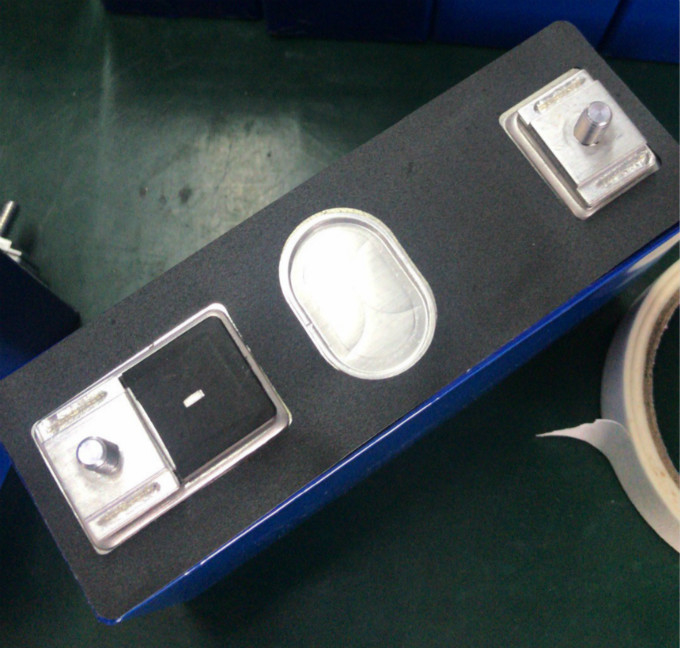

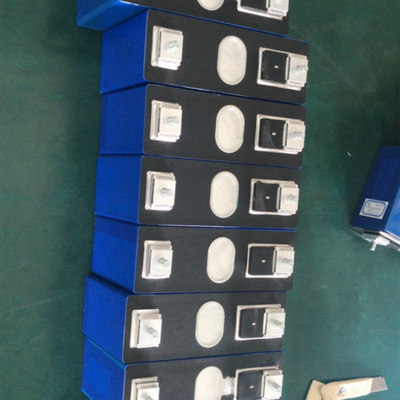

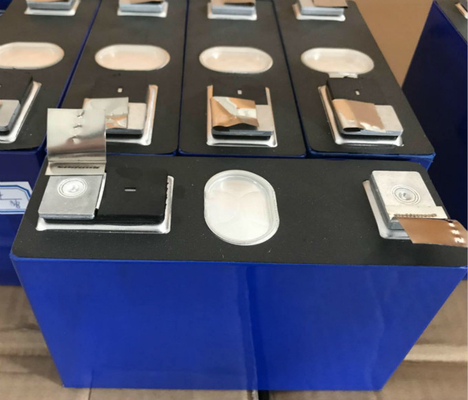

3.7 rechargeable battery, 3.7 v 100ah, 3.7 volt lithium ion battery, prismatic cell
WHY CHOOSE US?
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
| Model |
RJ-LFP45173126-100 |
| Casing material for single cell |
Aluminum shell |
| Nominal Voltage |
3.7V |
| Capacity |
100Ah |
| Core size |
D45*W173*H126MM |
| Cell Weight |
2.1KG |
| Charging Current |
Standard Charging:0.2C |
| |
Max Charging:1C |
| Max Discharging Rate |
Continuous Discharging:2C |
| Cut-off Voltage |
Charging:3.65V |
| |
Discharging:2.5V |
| Internal Resistance |
≤ 0.5mΩ (At 0.2C rate, 2.0V cut-off) |
| Working Temperature |
Charging: -10°C~55°C |
| |
Discharging: -20°C~70°C |
| Storage Temperature |
≤1month: -10–45°C |
| |
≤3month: 0–30°C |
| |
≤6month: 20±5°C |
| Life Cycle |
>=6000 times |
RJ Battery Destructive Test
RJ Battery Application
Advantages of lifepo4 battery, lfp battery, life battery cell
Longer battery life – 6000times life cycle , 5 times more than lead acid batteries
- Low self-discharge
- Free of charge memory
- Steady discharge and charge performance.
- Outstanding thermal stability
- Wide temperature performance
- Short circuit protection
- Over charge and over discharge protection
- Over current protection
- Easy carrying and installation - can be carried and installed in any direction
- Fast charging - about 4~6 hours to be fully charged
- Lighter weight - 1/2~1/4 in weight compared to LA batteries
- Require no change to a lead acid battery charging system
- Better safety - mild warm, no explosion and firing, free of leakage
- Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals, no gasses during charge, free of leakage
RJ Production Line
RJ Battery Warehouse
