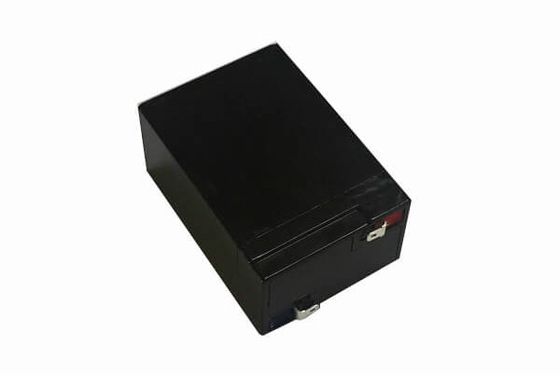

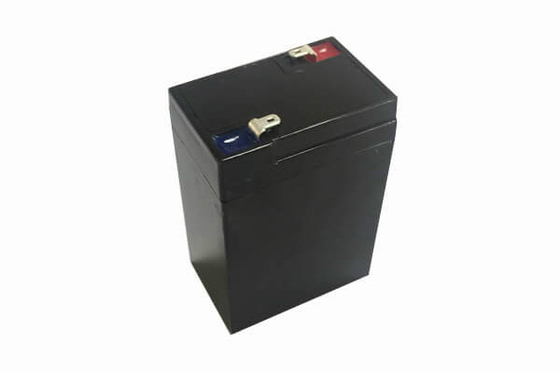

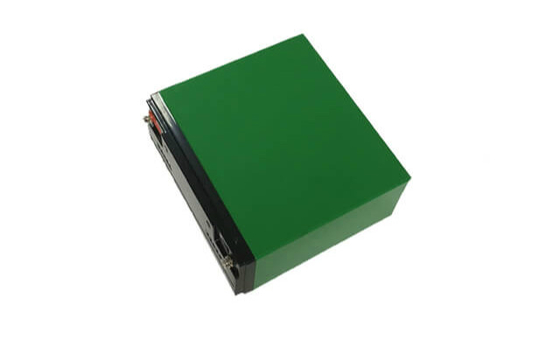

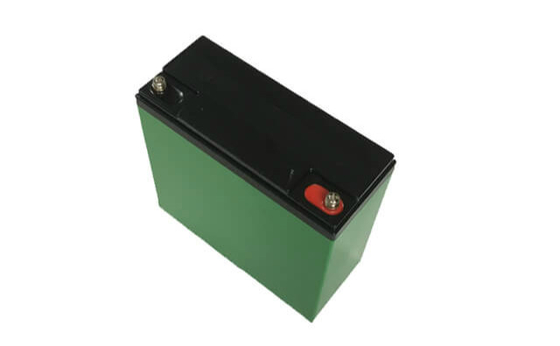

Rechargeable 12 volt Lithium Battery 30ah Li ion For Telecom Base
Station Wheelchair
RJ 12V lithium battery 30ah is Powerful rechargeable battery,
it can discharge 100% DOD without damage to the battery,
It is very small in size and light in weight compared to same capacity of lead acid battery.
| Items |
Parameter |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
30Ah |
| Energy |
384Wh |
| Internal Resistance |
≤15mΩ |
| Limited Charge Voltage |
14.6±0.2V |
| Floating Charge Voltage |
13.8±0.2V |
| Charge Method |
CC/CV |
| Discharge Cut-off Voltage |
10.0V |
| Charge Current |
6A (Customizable) |
| Continuous Discharge Current |
30A (Customizable) |
| Pulse Discharge Current |
60A (Peak) |
| Cycle Life |
> 6000 cycles |
| Dimension (mm) |
L*W*H: 165*125*173mm |
| Weight |
6Kg |
| Charge Temperature Range |
0~45℃ |
| Discharge Temperature Range |
-20~60℃ |
| Recommended Operating Temperature |
15~35℃ |
| Self-Discharge Rate (Residual capacity) |
≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) |
≤1.5%/month; ≤8%/years |
With BMS inside the RJ 12v 30ah lithium battery, the battery will automatically cut off
when it reach the limit of charge & discharge voltage, the battery can be well protected.
| No. |
Item |
Test Item |
Creterion |
| 1 |
Voltage |
Charging Voltage |
DC:14.4V CC/CV |
| Balance voltage for single cell |
3.50±0.025V |
| 2 |
Current |
Balance voltage for single cell |
35±5mA |
| Current consumption |
≤50μA |
| Charging current |
10A |
| Rated continuous discharging current |
30A (Peak 60A) |
| 3 |
Over charge Protection |
Over charge detection voltage for single cell |
3.65V±0.025V |
| Over charge detection delay time |
0.7S—1.3S |
| Over charge release voltage for single cell |
3.550±0.05V |
| 4 |
Over discharge Protection |
Over discharge detection voltage for single cell |
2.50V±0.07V |
| Over discharge detection delay time |
1.6±0.5S |
| Over discharge release voltage for single cell |
3.00±0.75V |
| 5 |
Over current Protection |
Over current detection current |
500±50A |
| Over current detection delay time |
1.6±0.5S |
| Release condition |
Cut load |
| 6 |
Short Protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
230uS—500uS |
| Release condition |
Cut load |
| 7 |
Resistance |
Protection circuitry (MOSFET) |
≤60mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85℃ |
| Storage Temperature Range |
-40~+125℃ |
RJ 12v lithium battery
* only 1/3 the weight of lead acid battery with same energy
* Over 6000 100% discharge cycles while lead acid only has 300 cycles.
* can be discharged to 100% compared lead acid can only use 70% of the capacity.
* High discharge rate and quick charging capability;
* very low self discharge rate, no more than 6~8% per year;
* has a wider operation temperatures of -20 to 75 deg.C
* can put in parallel or series to reach higher capacity and voltage for different applications.
* Absolute Maintenance free;
* contain zero in any toxic heavy metals lead, cadmium, which makes LiFePO4 batteries the most environmentally friendly battery chemistry among all kinds of lithium battery.
