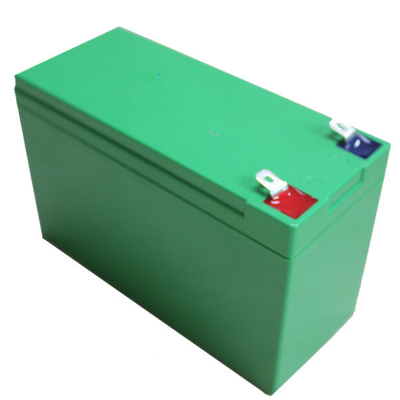

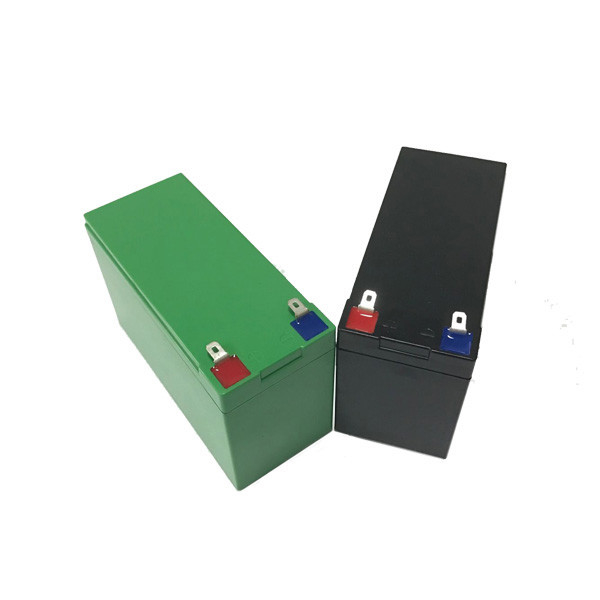

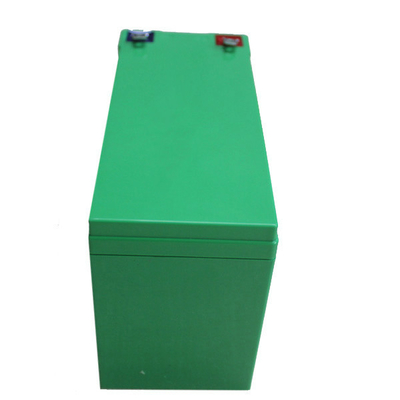

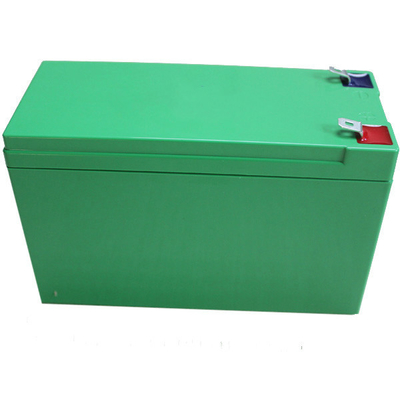

10Ah 12 volt Lithium Battery LiFePo4 5years Warranty For RV
Caravan House Power
RJ is a lithium battery professional manufacturer
We provide Best quality 12v lithium battery 10ah with Good price
| Items |
Parameter |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
10Ah |
| Energy |
128Wh |
| Internal Resistance |
≤15mΩ |
| Limited Charge Voltage |
14.6±0.2V |
| Floating Charge Voltage |
13.8±0.2V |
| Charge Method |
CC/CV |
| Discharge Cut-off Voltage |
10.0V |
| Charge Current |
2A (Customizable) |
| Continuous Discharge Current |
10A (Customizable) |
| Pulse Discharge Current |
20A (Peak) |
| Cycle Life |
> 6000 cycles |
| Dimension (mm) |
L*W*H: 150*95*65mm |
| Weight |
2Kg |
| Charge Temperature Range |
0~45℃ |
| Discharge Temperature Range |
-20~60℃ |
| Recommended Operating Temperature |
15~35℃ |
| Self-Discharge Rate (Residual capacity) |
≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) |
≤1.5%/month; ≤8%/years |
RJ 12v 10ah lithium battery is made with built-in BMS, Bluetooth or RS485
Communication function is optional.
| No. |
Item |
Test Item |
Creterion |
| 1 |
Voltage |
Charging Voltage |
DC:14.4V CC/CV |
| Balance voltage for single cell |
3.50±0.025V |
| 2 |
Current |
Balance voltage for single cell |
35±5mA |
| Current consumption |
≤50μA |
| Charging current |
10A |
| Rated continuous discharging current |
10A (Peak 20A) |
| 3 |
Over charge Protection |
Over charge detection voltage for single cell |
3.65V±0.025V |
| Over charge detection delay time |
0.7S—1.3S |
| Over charge release voltage for single cell |
3.550±0.05V |
| 4 |
Over discharge Protection |
Over discharge detection voltage for single cell |
2.50V±0.07V |
| Over discharge detection delay time |
1.6±0.5S |
| Over discharge release voltage for single cell |
3.00±0.75V |
| 5 |
Over current Protection |
Over current detection current |
500±50A |
| Over current detection delay time |
1.6±0.5S |
| Release condition |
Cut load |
| 6 |
Short Protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
230uS—500uS |
| Release condition |
Cut load |
| 7 |
Resistance |
Protection circuitry (MOSFET) |
≤60mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85℃ |
| Storage Temperature Range |
-40~+125℃ |
1. High-tech BMS for 12 volt lithium battery
RJ has a R&D team of more than 60 engineers, everyone in this team is a expert in 12v lithium battery industry for at least 10years, We not only produce lifepo4 prismatic battery from scratch, but also we design high-tech BMS that match our battery perfectly. Today, RJ is a successfully leading technology company in the battery management system. and our 12v lithium battery is widely various application such as EV, Electrial forklift, Camper RV, E-Boat, Solar off on grid energy storage.
2. Customization service for 12 volt lithium battery
From voltage to capacity, 3.2v up to 96v, 10ah up to 1000ah, or even large scale battery energy containerised storage system, we can customize for you. Just send us an enquiry with details requirements, and our engineer team will quickly evaluate and our sales team will provide you quote with professional solution within 24hours. We have done so many cases that we are now very well experienced with nearly all kinds of requirements, such as waterproof case, portable case, high discharge rate requirement, ABS shell case, CE certficated battery, fast charging time requirements etc. We are ready to help.
3. One-stop turkey solution for 12 volt lithium battery
We are very proud of our leading technology in lithium lifepo4 battery and BMS, we are also very proud to have partners in inverter, solar charger, solar panels around this industry. We carefully choose our partner to fullfil all our customers needs with very competitive price and top quality. With our excellent partner, We are able to provide you one stop and turnkey solution. Which save you time and energy. 12v lithium battery with capacity from 10ah up to 1000ah. Above all, with the new mode of commercial, we are able to offer you the lowest price that in the market other competitor can hardly match. Your 100% satisfaction is our ultimate goal. Just contact us for more details.
