|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Price:||USD1-100/pcs (FOB Shenzhen)|
|Packaging Details:||Carton Package|

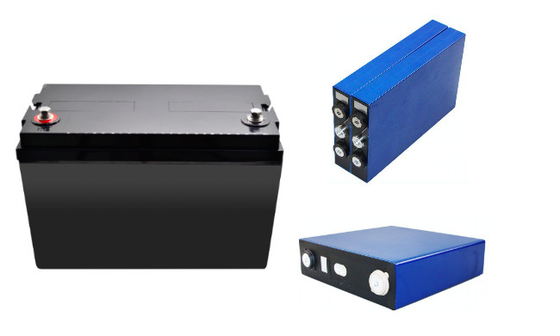

120 Ampere Lithium Battery 12 Volt Drop in Replacement For AGM
1,Q: What kind of lithium battery RJ mainly produce?

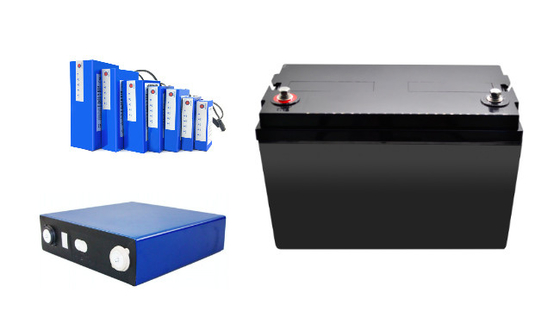

A: We produce lifepo4 battery prismatic cell from scratch 10ah up to 271ah, and we also do lithium iron phosphate battery pack from 12v -96v, 10ah up to 1000ah. We also do powerwall home battery, and provide solar off grid system solution which includes powerwall battery and matching inverter, solar charger, solar panels as a package. As a leading manfacturer in lithium battery industry for over 16years, we can always offer you good price with top quality.
2,Q: Can you explain what is overcharge of 12v lithium battery?
A: before we define what is over charged, let us take a look at how 12v lithium battery being charged normally. The 3.2V of lithium iron phosphate battery pack is rated voltage. In the charging process, the full voltage is related to the charging current. When the current is 0.3C, 3.8V can be judged to be full. If it is 0.1C, 3.65V can be considered full. CCCV charging method is recommended for lithium iron phosphate batteries, that is, constant current before constant voltage. As for 12v lithium battery, since it is made by 4 3.2v battery in series, so the charging voltage is 4*3.65v, which is 14.6v. when reach this voltage, BMS will cut off the battery to stop charging. If not, it will be overcharging.
3,Q:What is the over discharge voltage of 12v lithium battery?
A: for RJ 12V lithium battery, it is made of lifepo4 battery, which is 3.2v rated for single battery cell, and the limit discharge voltage is 2.5v, therefore, for 12v lithium battery, the limit discharge voltage is 2.5v *4, which is 10v. when reach 10v, the BMS will automatically cut off the load to stop over discharging. Since over discharge will damage the battery cycle life.
4,Q: What is the MOQ for first sample order for 12v lithium battery?
A: MOQ 1pcs, you can place order of 1pcs to test before you move on to large order. We offer 5years warranty with 6000cylces guaranteed for our RJ 12V lithium battery, which is made with built-in BMS. Bluetooth optional.
5,Q: How long is the production time for sample order?
A: if for lifepo4 prismatic cells from 10ah to 271ah, sample order is 3days, bulk order is 7days.
If for RJ 12v lithium battery from 10ah to 1000ah, sample order is about 15days, bulk order is about 20-25days.
6,Q: What about your package and shipping method and how long is delivery time?
A: We usually pack battery cells with cartoon box for sample order, and for bulk order, we will enhance it by adding a wooden box and a pallot board.
As for shipping method and delivery time, here is the details
Ship by express, it takes about 5-7days
Ship by sea, it takes about 20-30days
7. Q: What kind of battery cable should I use for RJ 12V lithium battery?
Actually it is up to power of load and working current required.
Power Wire Section Area--Current Carrier Contrast Table
Maximum Allowable Current Carrier for Line Number Cross Section Area (mm2) (A)
0-15.2m < 1.8-15.2m > 15.2m
18AWG 0.85 10 10 107 7
16AWG 1.25 13 15 13 10 12 10
14AWG 2.00/20 18/17 13
12AWG 3.30/30 25/20 18
There should be three choices for the cross section of the power cord:
1 current carrying capacity, which is calculated to be the power W of electrical appliances.
2 Many electrical appliances will produce a certain degree of additional load at the moment of startup, so there should be a coefficient greater than 1 (the specific size should be related to the type of electrical appliances)
3. The heat-resistant grade of the whole power supply line and its cross section are both important factors affecting the carrying capacity, and they are both positive and advantageous factors.
4 Small household appliances have H05 wires for more than 3KG and H03 wires for less than 3KG.
Exposure length should be related to the safety of building wiring, such as building regulations, minimum requirement of power outlet distance from the bottom, and exposure length is related to these requirements. A. Normal wires and wires will be printed or branded on the outer surface of some safety specifications, such as CSA (Canadian Security).
If not, it would be less secure.
B. External diameter of inner copper wire, copper wire as conductor, theoretically, the thicker the outer diameter, the smaller the internal resistance, the lower the chance of scalding, and the outside of inner copper wire.
A gauge (AWG) can be found at a printing or branding place on the outer skin of a wire. For example, "3C/18AWG" means a line with 18AWG.
Three, the lower the number of gauges, the thicker the outer diameter of the inner copper wire. The following common gauges are exchanged:
16AWG = 1.29 mm, 18AWG = 1.02 mm, 20AWG = 0.813 mm, 24AWG = 0.511 mm
AWG: American Wire Gage
For standard PVC wires, the following are the maximum withstanding currents for these wire diameters:
20AWG - > 13A
Considering the reality, we should leave some room in use, otherwise the whole line will be heated.
|Series & Parallel Application||up to 4 series 10 parallel connected application|
|Limited Charge Voltage||14.6±0.2V|
|Floating Charge Voltage||13.8±0.2V|
|Discharge Cut-off Voltage||10.0V|
|Charge Current||40A (Customizable)|
|Continuous Discharge Current||100A (Customizable)|
|Pulse Discharge Current||200A (Peak)|
|Cycle Life||> 6000 cycles|
L325mm x W172mm x H232mm
|Charge Temperature Range||0~45℃|
|Discharge Temperature Range||-20~60℃|
|Recommended Operating Temperature||15~35℃|

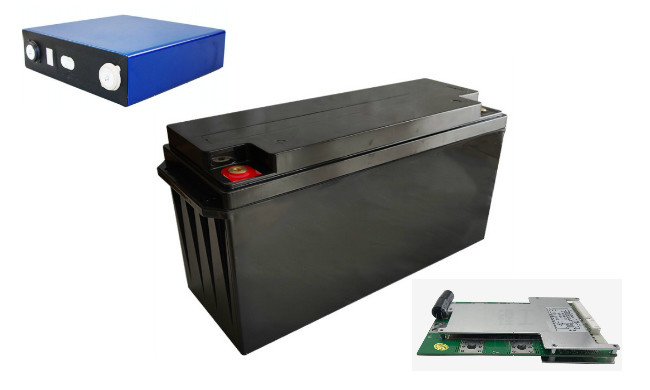

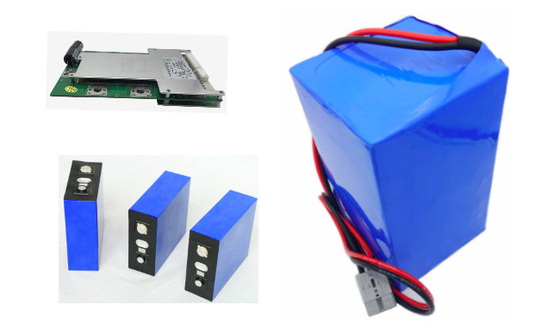

Built in BMS
|1||Voltage||Charging Voltage||DC:14.4V CC/CV|
|Balance voltage for single cell||3.50±0.025V|
|2||Current||Balance voltage for single cell||35±5mA|
|Rated continuous discharging current||100A (Peak 200A)|
|3||Over charge Protection||Over charge detection voltage for single cell||3.65V±0.025V|
|Over charge detection delay time||0.7S—1.3S|
|Over charge release voltage for single cell||3.550±0.05V|
|4||Over discharge Protection||Over discharge detection voltage for single cell||2.50V±0.07V|
|Over discharge detection delay time||1.6±0.5S|
|Over discharge release voltage for single cell||3.00±0.75V|
|5||Over current Protection||Over current detection current||500±50A|
|Over current detection delay time||1.6±0.5S|
|Release condition||Cut load|
|6||Short Protection||Detection condition||Exterior short circuit|
|Detection delay time||230uS—500uS|
|Release condition||Cut load|
|7||Resistance||Protection circuitry (MOSFET)||≤60mΩ|
|8||Temperature||Operating Temperature Range||-40~+85℃|
|Storage Temperature Range||-40~+125℃|
