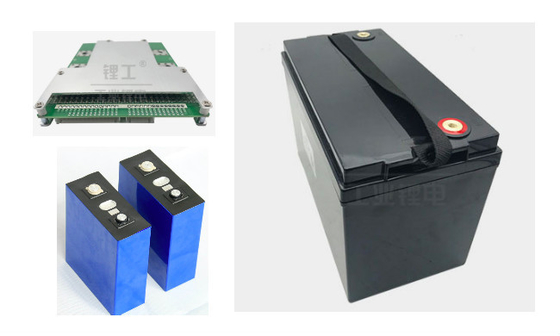

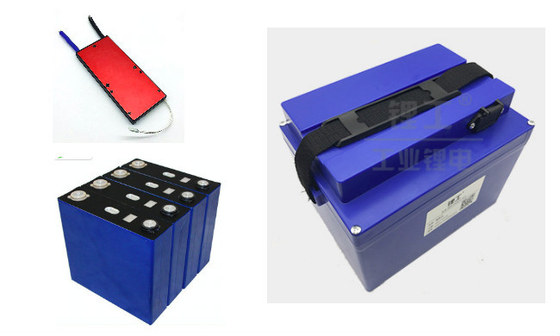

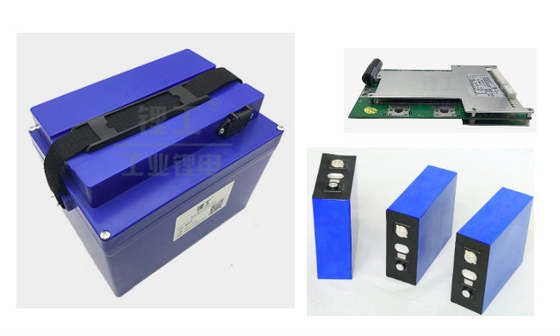

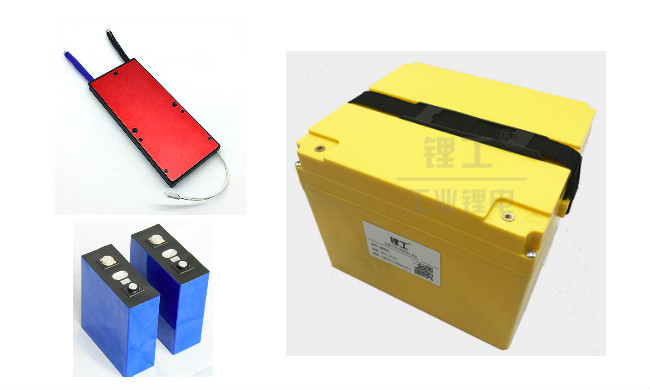

Prismatic Lithium Battery 12 volt 100Ah High Power LFP For Golf Car
Trolley
Advantage of 12 volt lithium battery
1. Long life 6000cycles
Our 12 volt lithium batteries reach at least 6000cycles under 100% DOD, which equalys up to 10 times longer than AGM, Lead-acid, or Gel batteries, our lithium battery still has at least 70% after 6000cycles charge and discharge. Most lead acid, AGM, Gel only last less than two years. Plus, lithium battery is free of maintenance, which is very convenient in use. It saves you to worry about adding water to the battery from time to time, this sometimes can be quite a disturbing issue. Lithium battery does not has such a problem at all.
2. High Efficiency 98%
Lifepo4 Lithium battery has very high efficiency in charge and discharge which provides outstanding performance needed for many energy storage applications. Fast charging can reach 1C, which means to charge it fully within 1hour. Our 12 volt lithium battery also has a 2C discharge rate of discharge, which is perfect for application that needes a burst of power such as low speed city car, golf car, motor cycles, electric boat engine starter etc. Lead-acid batteries takes a far longer time while charging, it is very time consuming, poor performance and inefficiently when discharge at a slightly high rate, with 98% round trip efficiency, our 12 volt Lithium battery is very incomparable. Unlike AGM, or GEL, Or lead acid, the temperature won’t become a issue when it comes to power delivery. Especially when working in extreme bad environment, 12 volt ltihium battery will distinguish itself by providing stable and reliable performance, it is your best choice of replacement for lead acid battery or AGM or gel.
3. 1/3 Lighter weight
RJ 12 Volt lithium battery is made of LiFePO4 chemistry, which is of more energy than lead-acid or AGM or Gel, namely higher energy density, thus the not only the size but also the weitht of the battery is greatly reducing, as much as 1/3 in size, and 1/ 2 in weight, Compared to some other type of lithium chemistries, lifpo4 lithium is much more lighter and smaller, this saves you precious space when installation in a RV or Electric Boat. And also very flexible and convenient.
Specification of 12V 100Ah Lithium battery
| ItemsItems |
Parameter |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
100Ah |
| Energy |
1.28KWh |
| Internal Resistance |
≤20mΩ |
| Series & Parallel Application |
up to 4 series 4 parallel connected application |
| Limited Charge Voltage |
14.6±0.2V |
| Floating Charge Voltage |
13.8±0.2V |
| Charge Method |
CC/CV |
| Discharge Cut-off Voltage |
10.0V |
| Standard Charge Current |
20A |
| Max. Charge Current |
100A |
| Standard Continuous Discharge Current |
100A |
| Max. Continuous Discharge Current (<30min) |
100A |
| Pulse Discharge Current (<3s) |
200A |
| Cycle Life |
> 6000 cycles |
| Dimension (mm) |
Length: 323±2 Width: 171±2 Height: 232±2 |
| Weight |
12Kg |
| Charge Temperature Range |
0~45℃ |
| Discharge Temperature Range |
-20~60℃ |
| Recommended Operating Temperature |
15~35℃ |
| |
|
Built-in BMS
| No. |
Item |
Test Item |
Creterion |
| 1 |
Voltage |
Charging Voltage |
DC:14.4V CC/CV |
| Balance voltage for single cell |
3.50±0.025V |
| 2 |
Current |
Balance voltage for single cell |
35±5mA |
| Current consumption |
≤50μA |
| Maximal continuous charging current |
100A |
| Rated continuous discharging current |
100A (Peak 200A) |
| 3 |
Over charge Protection |
Over charge detection voltage for single cell |
3.65V±0.025V |
| Over charge detection delay time |
0.7S—1.3S |
| Over charge release voltage for single cell |
3.550±0.05V |
| 4 |
Over discharge Protection |
Over discharge detection voltage for single cell |
2.50V±0.07V |
| Over discharge detection delay time |
1.6±0.5S |
| Over discharge release voltage for single cell |
3.00±0.75V |
| 5 |
Over current Protection |
Over current detection current |
500±50A |
| Over current detection delay time |
1.6±0.5S |
| Release condition |
Cut load |
| 6 |
Short Protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
230uS—500uS |
| Release condition |
Cut load |
| 7 |
Resistance |
Protection circuitry (MOSFET) |
≤60mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85℃ |
| Storage Temperature Range |
-40~+125℃
|
Some other features
When put lead-acid and our 12 volt lithium batteries together and compare, our 12 v lithium battery without any doubt, has much more significant advantages, round discharge with charge efficiency, much longer lifecycles, deep as much as 100% discharge DOD, in the appereance, our 12 volt lithium LiFePO4 batteries might come with a higher price tag, but if you consider the 6000cycles life span, and consider the 100% energy discharge DOD, and the weight and size , you will find it is quite a good deal! It is much more money saving to replace the old, heavy , troublesome lead acid battery with new, lighter, smaller, higher energy density 12 volt lithium battery. It is more Safety, and totally sever as Drop-in Replacement
Wide range of operation Temperature , most importantly, it is Maintenance Free and has zero Hazardous to human or environment.
