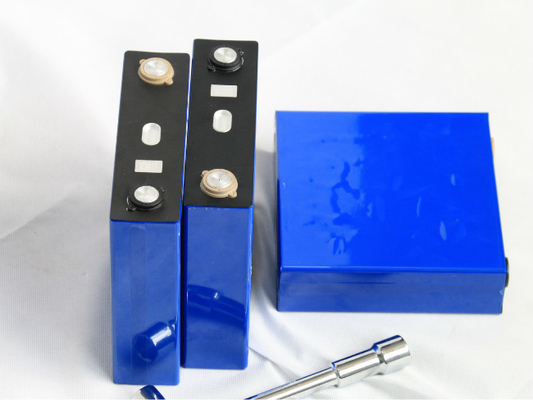

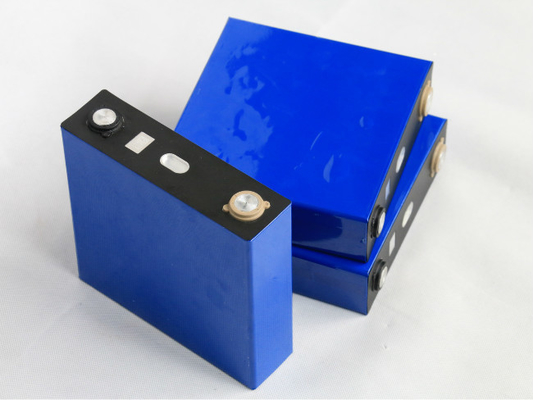

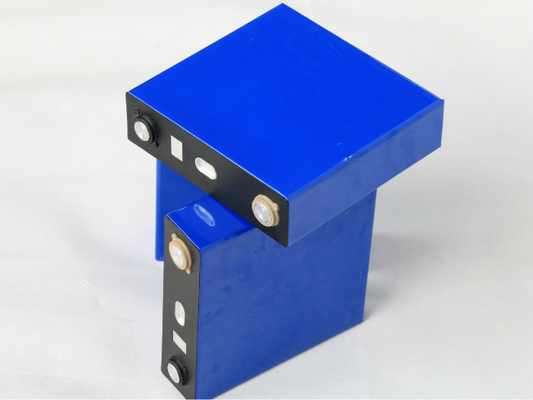

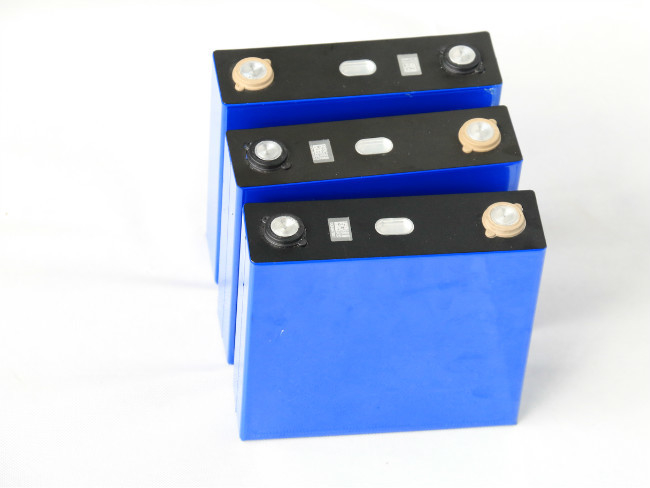

Light Weight LiFepo4 Cell 3.2Volt 176AH Aluminum Deep
Cycle For Solar System
| Model |
RJ-LFP54173200-176 |
| Casing material for single cell |
Aluminum shell |
| Nominal Voltage |
3.2V |
| Capacity |
176Ah |
| Core size |
D54*W173*200MM |
| Cell Weight |
3.82kg |
| Charging Current |
Standard Charging:0.2C |
| |
Max Charging:1.5C |
| Max Discharging Rate |
Max Discharging:2C |
| Cut-off Voltage |
Charging:3.65V |
| |
Discharging:2.5V |
| Internal Resistance |
≤ 0.5mΩ (At 0.2C rate, 2.0V cut-off) |
| Working Temperature |
Charging: -10℃~55℃ |
| |
Discharging: -20℃~70℃ |
| Storage Temperature |
≤1month: -10–45℃ |
| |
≤3month: 0–30℃ |
| |
≤6month: 20±5℃ |
| Life Cycle |
>6000 times |
Application
1. Our prismatic lifepo4 battery cells widely used in application like UPS (Uninterrupted Power Supply), power station.
2. Electric EV: E-scooters, Golf trolleys.
3. 48V LiFEPO4 battery for Telecommunications Base Stations.
4. Solar house Back-up power, miner’s lamp, outdoors portable power supply
5. Solar power energy storage system, family backup power station, solar street light.
BMS & Connectors Available
FAQ
Q1: May I know are you Manufacturer or just simply a trading company?
A: Shenzhen RJ Energy Co.Ltd is a leading Lithium battery Manufacturer for over 16years, We are recognized by many customers all over the world.
Q2: Can you provide any International certification for the batteries?
A:Yes, all our RJ LiFePO4 Cells has passed many International standard certifications likeISO 9001:2008-certified factory, CE, IEC62133, UN38.3, ROHS, MSDS etc.
Q3: How long will the production time for mass order?
A: it usually takes no more than 7days.
Q4: Do you have any samples in stock that can be shipped immediately?
A: Yes, We have large in stock for prismatic lifepo4 cells from 10ah up to 271ah. All the batteries are ready to ship and will arrange shipment immediately after payment confirmed.
Q5: Where can I buy the right charger to match with RJ battery?
A: We provide the charger that perfectly works with our batteries for you. And we will help provide any technical instructions after sale if needed in practice.
