Lifepo4 battery cells high density prismatic 10Ah to 271Ah
for Solar off grid system electric golf car
WHY CHOOSE US?
1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.
2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.
3. Flexible customizing and manufacturing accepted.
4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.
5. Strict management and control for every progress in producing and 100% QC inspection before shipment.
6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.
7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.

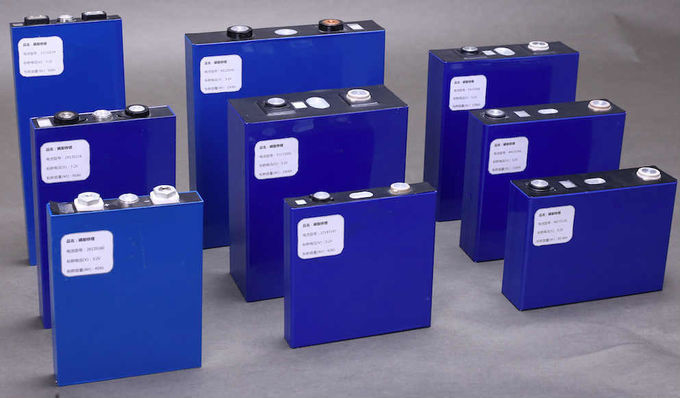

RJ LiFePo4 battery cells Manufacturer
| 3.2V LIFEPO4 Battery Cells |
| Type Lifepo4 |
Dimensions |
Weight |
Cycles @ 100%DOD |
Warranty |
| 3.2V 10AH |
D17*W79*H135MM |
0.55KG |
>6000times |
5years |
| 3.2V 25AH |
D20*W100*H140MM |
0.95KG |
>6000times |
5years |
| 3.2V 40AH |
D26*W135*H170MM |
1.33KG |
>6000times |
5years |
| 3.2V 42AH |
D27*W147*H147MM |
1.33KG |
>6000times |
5years |
| 3.2V 50AH |
D32*W173*H127MM |
1.42KG |
>6000times |
5years |
| 3.2V 60AH |
D32*W174*H148MM |
1.65KG |
>6000times |
5years |
| 3.2V 75AH |
D48*W174*H128MM |
2.12KG |
>6000times |
5years |
| 3.2V 80AH |
D48*W173*H126MM |
2.12KG |
>6000times |
5years |
| 3.2V 86AH |
D48*W173*H126MM |
2.12KG |
>6000times |
5years |
| 3.2V 92AH |
D29*W174*H203MM |
2.10KG |
>6000times |
5years |
| 3.2V100AH |
D34*W200*H168MM |
2.78KG |
>6000times |
5years |
| 3.2V 120AH |
D48*W173*H166MM |
2.84KG |
>6000times |
5years |
| 3.2V 140AH |
D46*W200*H168MM |
3.10KG |
>6000times |
5years |
| 3.2V 160AH |
D72*W174*H138MM |
3.46KG |
>6000times |
5years |
| 3.2V 176AH |
D54*W173*H200MM |
3.82KG |
>6000times |
5years |
| 3.2V 200AH |
D71*W173*H166MM |
5.00KG |
>6000times |
5years |
| 3.2V 240AH |
D71*W173*H200MM |
5.00KG |
>6000times |
5years |
| 3.2V 271AH |
D71*W173*H200MM |
5.40KG |
>6000times |
5years |

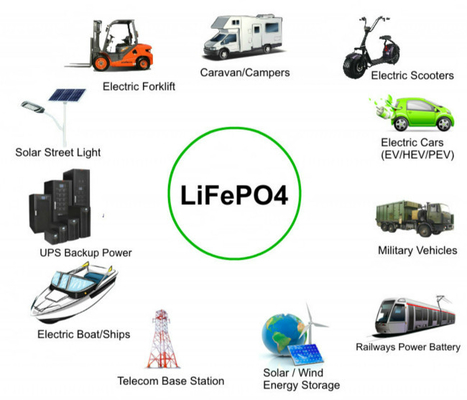

RJ Lifepo4 battery Cells Application
RJ Lifepo4 battery Cells Performance Test
RJ Lifepo4 battery Cells Destructive Test
Advantages Of Lifepo4 battery cells:
Longer battery life – 6000times life cycle , 10 times more than lead acid batteries
Low self-discharge
Free of charge memory
Steady discharge and charge performance.
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection
Easy carrying and installation - can be carried and installed in any direction
Fast charging - about 3~5 hours to be fully charged
Lighter weight - 1/2~1/4 in weight compared to LA batteries
Require no change to a lead acid battery charging system
Better safety - mild warm, no explosion and firing, free of leakage
Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals,
No gasses during charge, free of leakage and pollution
RJ lifepo4 battery cells Production Line
lifepo4 3.2, lifep04 battery, 3.2 volt battery,lifepo4 battery ce
Lifepo4 prismatic, Lifepo4 cells, Prismatic cell, Lithium phosphate battery

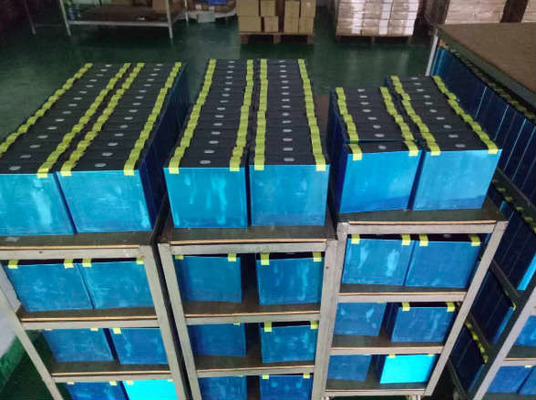

RJ lifepo4 battery cells Warehouse
