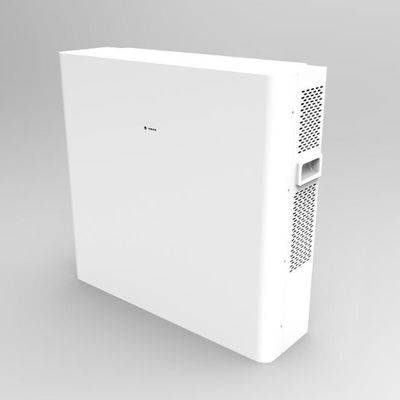

Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    • Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System
    • Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System
    • Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System
    • Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System
  • Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Product Details:

    Place of Origin: China
    Brand Name: RJ
    Certification: MSDS/UN38.3/ROHS/CE/UL/KC
    Model Number: RJ-Powerwall-5KWH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD1-100/pcs (FOB Shenzhen)
    Packaging Details: Wooden packing+Tray
    Delivery Time: 7days
    Payment Terms: TT
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Material: LiFePo4 Voltage: 51.2V
    Capacity: 5KWH Cycles: > 6000times
    Warranty: 10 Years Installation: Wall Mounted

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup

    Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System







    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Norminal Power(KWh) 5 KWh
    Norninal Capacity(Ah) 100Ah
    Norninal Voltage(V) 51.2V
    Type LiFePO4 Battery
    Dimensions (mm) 720 x 436 x 185 mm(Customized)
    Weight(Kg) 46Kg
    Discharging Voltage(V) 40~58.4 V
    Discharging Voltage(V) 57.5~58.4 V
    Charging/ 100A (Customizable)
    Discharging Current (A)
      150 A
      200 A(PeaK)
    Expansibility 100KWh
    20 moudles can be in parallel
    Installation Methode Wall Mounted
    Communication Port CAN,RS232,RS485, Bluetooth (Optional)
    Working Temperature(℃) 0~55℃
    Shelf Temperature(℃) -20~70℃
    Humidity 0-95% RH(Non-condensing)
    IP Grade (IP) 0-95% RH(Non-condensing)
    Altitude ≤3000m
    Authentication Level TuV/CE/UL/UN38.3
    Design Life(year) 20+ years (@25℃/77℉)
    Cycle Life (cycle) >6000Times (100%DOD)





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    No. Item Test Item Creterion
    1 Voltage Charging Voltage DC:58.4V CC/CV
    Balance voltage for single cell 3.50±0.025V
    2 Current Balance voltage for single cell 35±5mA
    Current consumption ≤50μA
    Charging current 100A
    Rated continuous discharging current 100A (Peak 200A)
    3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
    Over charge detection delay time 0.7S—1.3S
    Over charge release voltage for single cell 3.550±0.05V
    4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
    Over discharge detection delay time 1.6±0.5S
    Over discharge release voltage for single cell 3.00±0.75V
    5 Over current Protection Over current detection current 500±50A
    Over current detection delay time 1.6±0.5S
    Release condition Cut load
    6 Short Protection Detection condition Exterior short circuit
    Detection delay time 230uS—500uS
    Release condition Cut load
    7 Resistance Protection circuitry (MOSFET) ≤60mΩ
    8 Temperature Operating Temperature Range -40~+85℃
    Storage Temperature Range -40~+125℃



    Note BMS is customizable. More advanced functions available, such as bluetooth, RS485,

    CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off,

    BMS protocol available etc. Contact us for more details!





    Bluetooth Function (Optional)



    LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion
    application to deliver more power and extend long life. Also builted with bluetooth function allow
    you to read battery status freely anytime via your smart phone.

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System





    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid SystemPowerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid SystemPowerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System

    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    Powerwall 5Kwh 51.2V 100Ah LiFePO4 Battery For House Backup Power Off Grid System



    1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

    2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

    3. Flexible customizing and manufacturing accepted.

    4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

    5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

    6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

    7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.
