Place of Origin: | China |
Brand Name: | RJ |
Certification: | MSDS/UN38.3/ROHS/CE/KC |
Model Number: | RJ-LFP-12200-A |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | USD1-100/pcs (FOB Shenzhen) |
Packaging Details: | Carton Package |
Delivery Time: | 7days |
Payment Terms: | TT |
Supply Ability: | 100000Sets |
Material: | LiFepo4 | Voltage: | 12.8V |
---|---|---|---|
Capacity: | 200AH | Lifespan: | >20years |
LIfe Cycles: | >6000times | Weight: | 25KG |

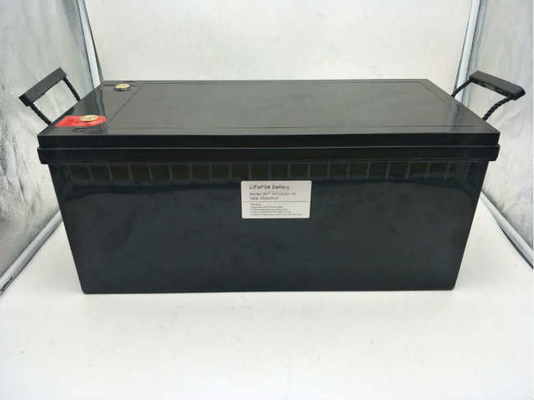

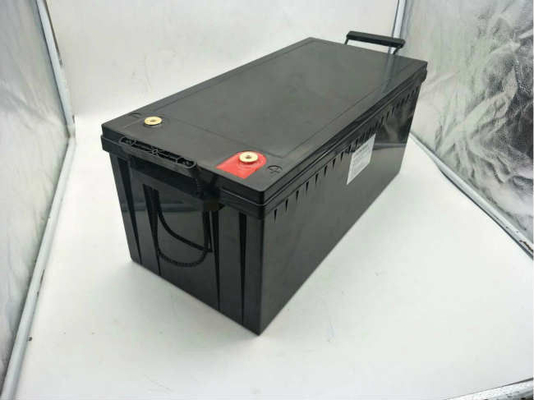

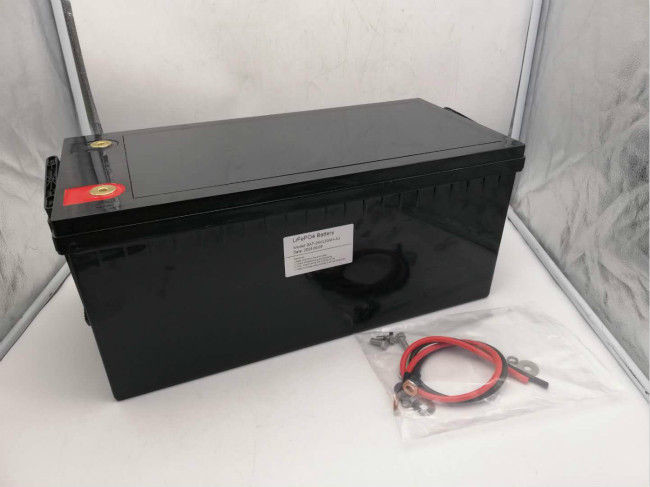

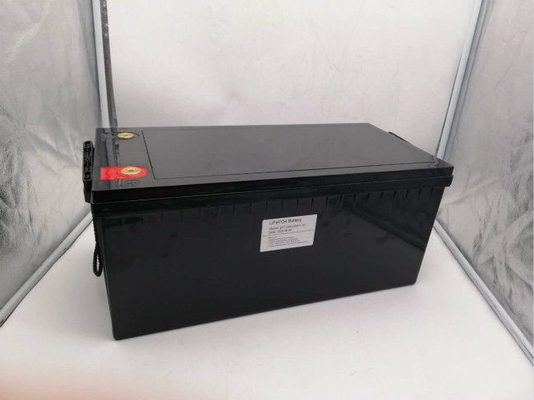

High Energy Density 200ah 12 volt Lithium Battery For Solar Hybrid
System Smart Robot
RJ 12v lithium battery is of high energy density, so far it is the highest level of all kinds lithium
battery in China market. RJ 12v lithium battery hence is very light in weight, it is half the weight
of the traditional old lead acid battery or AGM or Gel battery. Perfectly for energy storage with
long cycles of 6000times.
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Energy | 2560Wh |
Internal Resistance | ≤15mΩ |
Limited Charge Voltage | 14.6±0.2V |
Floating Charge Voltage | 13.8±0.2V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 10.0V |
Charge Current | 60A (Customizable) |
Continuous Discharge Current | 200A (Customizable) |
Pulse Discharge Current | 400A (Peak) |
Cycle Life | > 6000 cycles |
Dimension (mm) |
L525 W271 H232 (Customizable) |
Weight | 25Kg |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~60℃ |
Recommended Operating Temperature | 15~35℃ |
Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
RJ 12 volt lithium battery has wide arange of temperature operation. it can even works stable
with outside temperature below -20degree. the reason is that we can add heating equipement,
the BMS control the heating function. when the outside temperature is too low, it will start heating.
Thus our 12 volt lithium battery will always perform in its best capability.
No. | Item | Test Item | Creterion | |
1 | Voltage | Charging Voltage | DC:14.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 60A | |||
Rated continuous discharging current | 200A (Peak 400A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+125℃ |
RJ 12 volt lithiium battery is the best of you choice
1.Higher density in Energy, which ensure smaller in size and lighter in weight
2. can be made as battery module and assemble flexible to achieve different voltage and capacity.
3. outstanding stable performance, ensure high safe performance.
4. Longer Cycle Life: can reach at least 6000cycles at 100%DOD, 1 charge and 1 discharge fully is 1cycle. If you use 1cycle 1day, then you will just use 365cycles a year, and its lifespan is more than 20years.
5. Quick Charge: you can charge our battery within 1 hour in fast charing mode with a suitable high power charger.
6.No heavy metal element included which is very friendly to environment, no pollution.
7.advanced IC chips in BMS, low inner resistance, providing anti-shortcircuit, anti-overcharging and discharging, anti-overcurrent, anti-overload;
8. outstanding high temperature performance, our outdoors solar project, which temprature reach about 70degrees, and our battery working just very stable.
9. We have pass international strict quality test and granted certificates like MSDS, UN38.3, CE, KC, IEC62133, ROHS etc.
