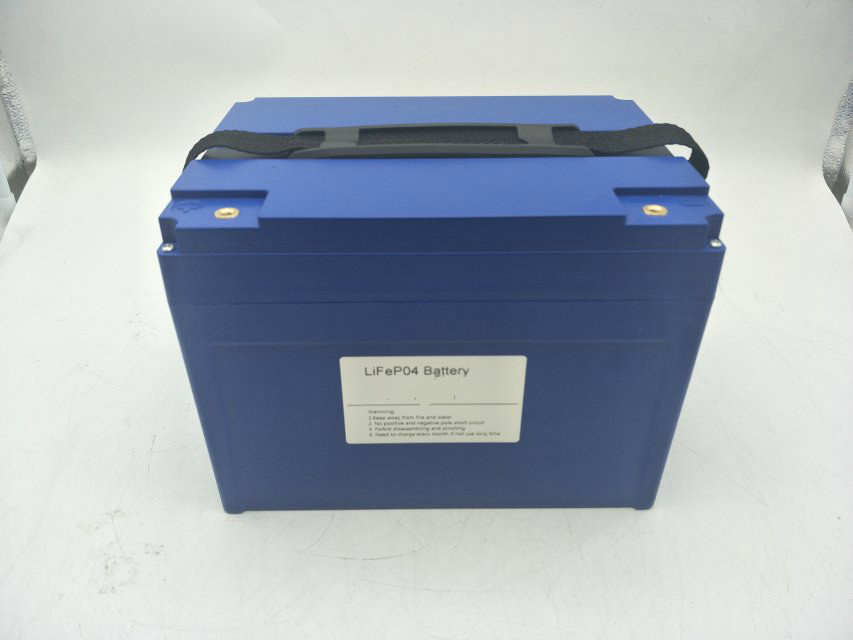

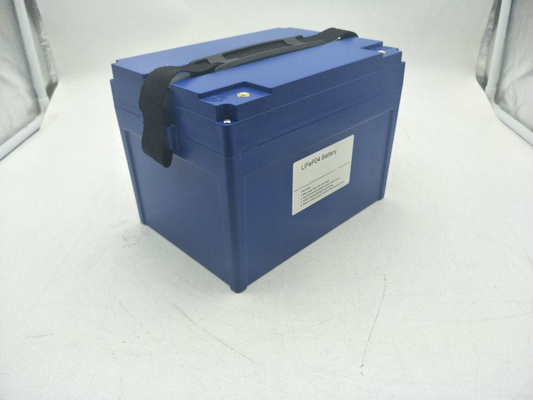

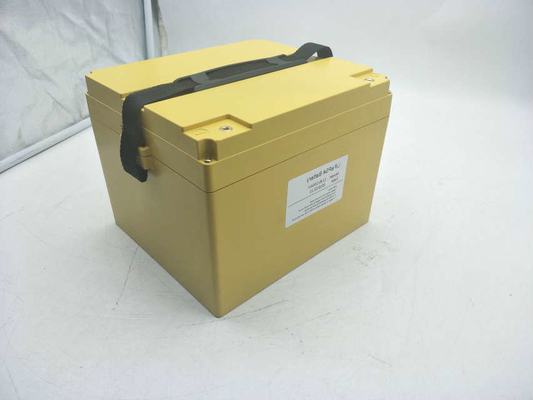

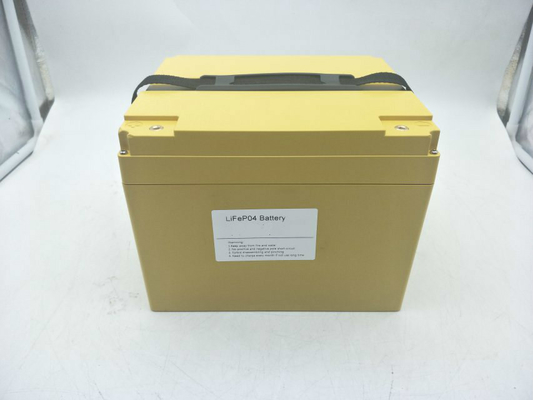

LFP 12 volt Lithium Battery 60ah DIY Portable For Solar Household
Power Bank
RJ 12v lithium battery is designed to work compatiable with lead acid battery charger. Thus
you can use your old battery charger to charge RJ 12 volt lithium battery, so long the charging
voltage is 14.6v, that is no problem.
| Items |
Parameter |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
60Ah |
| Energy |
768Wh |
| Internal Resistance |
≤15mΩ |
| Limited Charge Voltage |
14.6±0.2V |
| Floating Charge Voltage |
13.8±0.2V |
| Charge Method |
CC/CV |
| Discharge Cut-off Voltage |
10.0V |
| Charge Current |
20A (Customizable) |
| Continuous Discharge Current |
60A (Customizable) |
| Pulse Discharge Current |
120A (Peak) |
| Cycle Life |
> 6000 cycles |
| Dimension (mm) |
|
| Weight |
7.5Kg |
| Charge Temperature Range |
0~45℃ |
| Discharge Temperature Range |
-20~60℃ |
| Recommended Operating Temperature |
15~35℃ |
| Self-Discharge Rate (Residual capacity) |
≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) |
≤1.5%/month; ≤8%/years |
RJ Produce BMS that can support Bluetooth / RS485 communication functions. you can add
it into your customized 12v lithium battery, it is very convenient when you need to monitor the
operation of RJ 12 volt lithium battery.
| No. |
Item |
Test Item |
Creterion |
| 1 |
Voltage |
Charging Voltage |
DC:14.4V CC/CV |
| Balance voltage for single cell |
3.50±0.025V |
| 2 |
Current |
Balance voltage for single cell |
35±5mA |
| Current consumption |
≤50μA |
| Charging current |
20A |
| Rated continuous discharging current |
60A (Peak 120A) |
| 3 |
Over charge Protection |
Over charge detection voltage for single cell |
3.65V±0.025V |
| Over charge detection delay time |
0.7S—1.3S |
| Over charge release voltage for single cell |
3.550±0.05V |
| 4 |
Over discharge Protection |
Over discharge detection voltage for single cell |
2.50V±0.07V |
| Over discharge detection delay time |
1.6±0.5S |
| Over discharge release voltage for single cell |
3.00±0.75V |
| 5 |
Over current Protection |
Over current detection current |
500±50A |
| Over current detection delay time |
1.6±0.5S |
| Release condition |
Cut load |
| 6 |
Short Protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
230uS—500uS |
| Release condition |
Cut load |
| 7 |
Resistance |
Protection circuitry (MOSFET) |
≤60mΩ |
| 8 |
Temperature |
Operating Temperature Range |
-40~+85℃ |
| Storage Temperature Range |
-40~+125℃ |
