Place of Origin: | China |
Brand Name: | RJ |
Certification: | MSDS/UN38.3/ROHS/CE/KC |
Model Number: | RJ-LFP-12300-A |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | USD1-100/pcs (FOB Shenzhen) |
Packaging Details: | Carton Package |
Delivery Time: | 7days |
Payment Terms: | TT |
Supply Ability: | 100000Sets |
Material: | LiFepo4 | Voltage: | 12.8V |
---|---|---|---|
Capacity: | 300AH | Lifespan: | >20years |
LIfe Cycles: | >6000times | Weight: | 36KG |

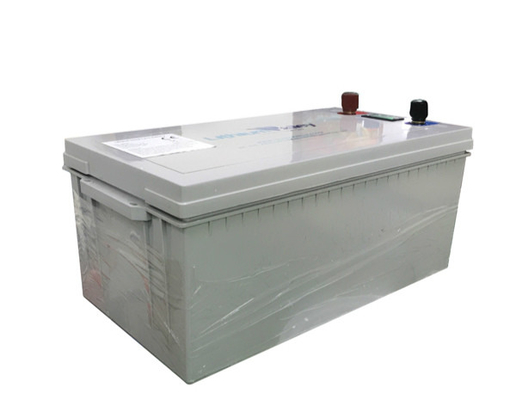

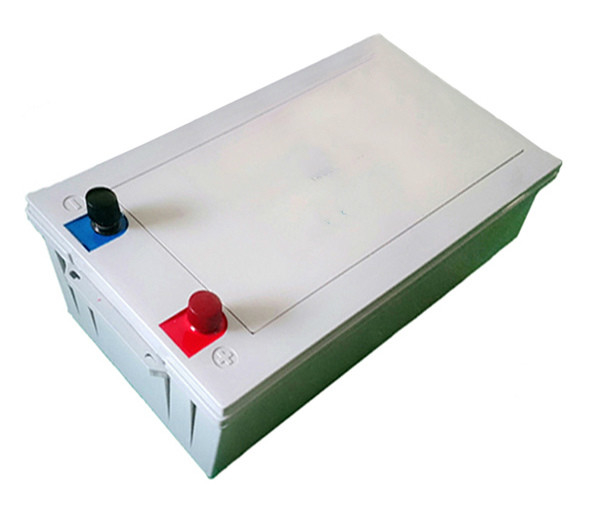

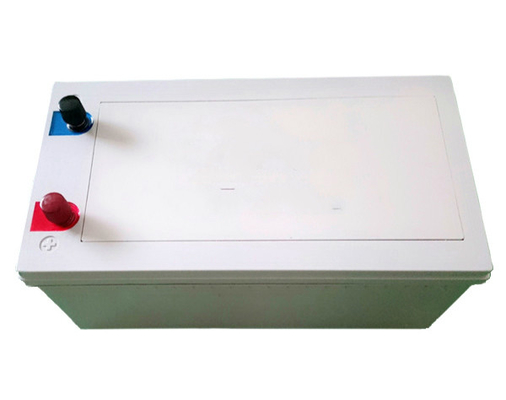

300ah 12 volt Lithium Battery lithium Iron Phosphate For Marine RV
AGV Golf Cart Solar
Due to its excellent performance in safety and long lifespan, RJ 12 volt lithium battery has
dominate the market in RV and Marine applications home and abroad. RJ adopt 3.2v lifepo4
battery cells, which is thesafest chemistry, and with 1c discharge and charge, it can reach at
least 6000cyles. it is almost 10 times much more than lead acid battery, and it is a lot better
than other competitors in the market.
Items | Parameter |
Battery Type | LiFePO4 |
Nominal Voltage | 12.8V |
Nominal Capacity | 3840Ah |
Energy | 2560Wh |
Internal Resistance | ≤15mΩ |
Limited Charge Voltage | 14.6±0.2V |
Floating Charge Voltage | 13.8±0.2V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 10.0V |
Charge Current | 60A (Customizable) |
Continuous Discharge Current | 200A (Customizable) |
Pulse Discharge Current | 400A (Peak) |
Cycle Life | > 6000 cycles |
Dimension (mm) |
L525 W291 H280 (Customizable) |
Weight | 36Kg |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~60℃ |
Recommended Operating Temperature | 15~35℃ |
Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
RJ now looking for partners to develop your local market together for mutual benefit. we have
price gradient for our distributors and further discount is avaiable to help you win your local
market. if you need 12v lithium battery for personal use, you can contact us to buy with factory
price, if you want to be our distributors, you can contact us too. let us talk more on it.
No. | Item | Test Item | Creterion | |
1 | Voltage | Charging Voltage | DC:14.4V CC/CV | |
Balance voltage for single cell | 3.50±0.025V | |||
2 | Current | Balance voltage for single cell | 35±5mA | |
Current consumption | ≤50μA | |||
Charging current | 60A | |||
Rated continuous discharging current | 200A (Peak 400A) | |||
3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | |
Over charge detection delay time | 0.7S—1.3S | |||
Over charge release voltage for single cell | 3.550±0.05V | |||
4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | |
Over discharge detection delay time | 1.6±0.5S | |||
Over discharge release voltage for single cell | 3.00±0.75V | |||
5 | Over current Protection | Over current detection current | 500±50A | |
Over current detection delay time | 1.6±0.5S | |||
Release condition | Cut load | |||
6 | Short Protection | Detection condition | Exterior short circuit | |
Detection delay time | 230uS—500uS | |||
Release condition | Cut load | |||
7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | |
8 | Temperature | Operating Temperature Range | -40~+85℃ | |
Storage Temperature Range | -40~+125℃ |
Q 1.Can you tell me how can I process with the payment?
A.You can pay your order via Paypal or by Bank transfer.
If by Paypal, added 5% Paypal fee.
If by bank transfer, added USD30 bank fee.
Q 2. May I know how long is the delivery time if I order RJ 12 volt lithium battery?
A. if deliver by air, it takes about 5days, if delivery by sea, then it usually takes about 20days.
Q 3. How do you pack the 12 volt lithium batteries when tranporation?
A. for small quantity and small battery, we usually pack with carton package,
For large quantity and large battery, We will pack with strong wooden box.
Q 4. Can you help if I want to print logo of our company in the 12v lithium battery?
A. yes, it is possible, just simply send a picture of your company logo and we can print it on.
Q 5. I am curious about how much capability of your monthly production for 12 v lithium battery?
A. simply put, our montly production capability is about 5000,000Ah
Q 6.May I know what is your main market globally?
A. so far, our products are very popular in Australia, North America and Europe. We are still looking for business partners to help develop local market together for win win benefit. We hope you can join us to establish a strong relationship in business to grow together.
Q 9. Is RJ 12v lithium battery good for connected to a inverter for a solar system?
A: Our battery works indepently to inverters so it is compatible with all kinds of inverters in the market. Our battery is LiFePO4 Which has the longest lifecycle of all kinds of lithium battery, it is perfectly for solar sytem.
