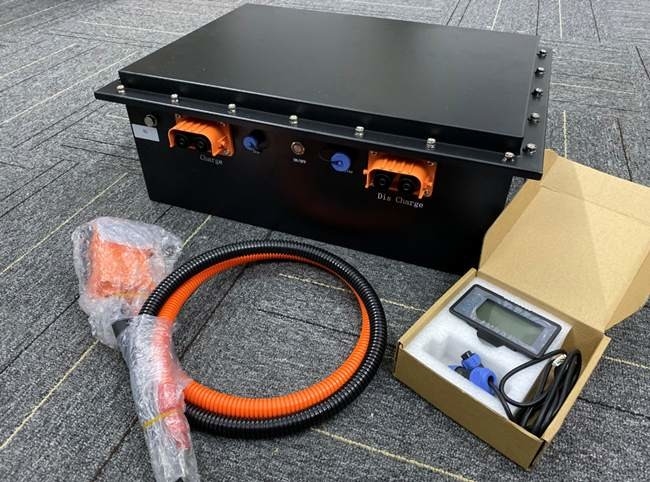

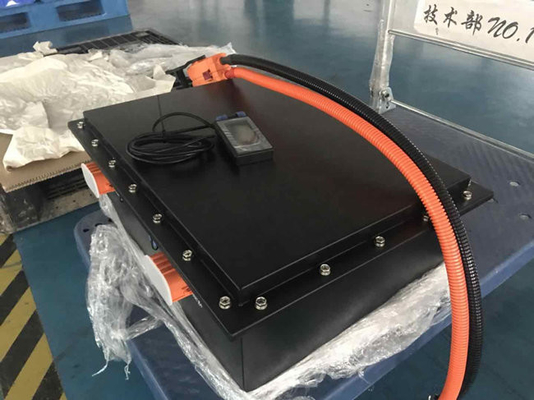

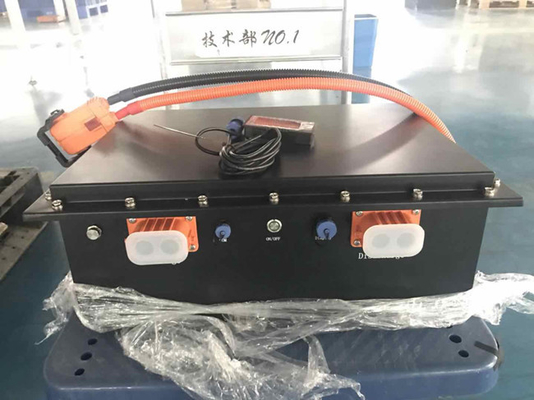

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

    • 72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful
    • 72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful
    • 72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful
    • 72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful
  • 72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

    Product Details:

    Place of Origin: China
    Brand Name: RJ
    Certification: KC/MSDS/UN38.3/ROHS
    Model Number: RJ-LFP-72150-GW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: USD1-10000.00 / PCS (FOB Shenzhen)
    Packaging Details: Wooden Package
    Delivery Time: 15 work days
    Payment Terms: T/T
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    MATERIAL: LiFepo4 VOLTAGE: 76.8V
    CAPACITY: 150AH LIFE CYCLES: 6000cycles
    LIFESPAN: >20years Weight: 90KG

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid

    Replacement Powerful Fast Charging



    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful



    Features

    1. RJ Lithium Golf cart battery are designed to replace the lead-acid battery,

    which are available for drop-in replacement in the Club Car and EZ-GO etc. vehicles nicely.

    2.  Smaller in size, 50% Light in Weight, but 200% More Powerful

    3.  Quick charging time,  up to 2hours

    4.  Increase greatly in mileage up to 100mile

    5. Long life cycle>6000times, designed lifespan>20years

    6. Factory warranty 5years

    7. Bluetooth, RS485, remote LCD screen Available

    8. Customization available for dealers and end-cosumers

    9. Waterproof matching Powerful LiFepo4 Golf cart battery Charger available

    10. Factory Price and price gradient available for dealers

    11. More model available, 50AH/120AH/150AH/160AH/200AH etc,  Contact us get more details!



    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful


    Items Parameter
    Battery Type LiFePO4
    Nominal Voltage 76.8V
    Nominal Capacity 150Ah
    Energy 11520Wh
    Internal Resistance ≤50mΩ
    Limited Charge Voltage 87.6V
    Charge Method CC/CV
    Discharge Cut-off Voltage 60V
    Charge Current 100A
    Continuous Discharge Current 100A
    Pulse Discharge Current 200A (Peak)
    Depth of Discharge 100%DOD
    Reserve Minutes @ 150A 60 min
    Reserve Minutes @ 50A 150min
    Cycle Life 6000 cycles
    Communication functions Bluetooth/RS485 Optional
    Temperature protection Available
    Auto heating function Optional
    Dimension Customized For Club Car Cushman EZGO Yamaha Star Car Polaris etc.
    Weight 90Kg
    Charge Temperature Range 0~55℃
    Discharge Temperature Range -20~65℃
    Recommended Operating Temperature 15~55℃
    Series Connection Customized
    Paralell Connection Customized

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

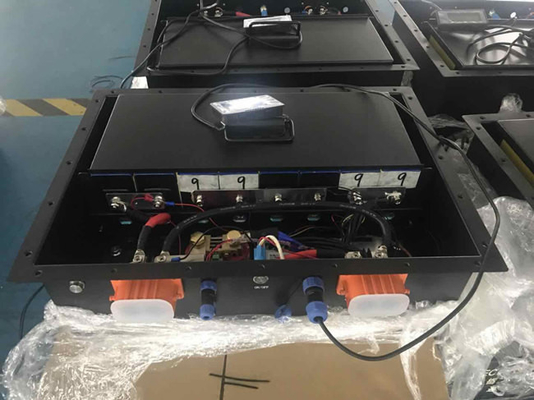

                                     Built-In BMS



    Item



    Content Criterion
    Over charge
     Protection




    Over charge detection voltage 3.6~4.25V
    Over charge detection delay time 0.1 S ~ 6S
    Over charge release voltage 3.5~4.25V
    Over discharge protection

    Over discharge detection voltage



    2.0~3.3V
    Over discharge detection delay time 0.1 S ~ 6S
    Over discharge release voltage 2.1~3.4V
    Charge
    Over current protection
    Charge Over current detection current 1~100A
    Charge Over current detection delay time 0.02S~ 6S

    Discharge

    Over current

    protection

    Discharge Over current detection current 1~600A

    Discharge Over current detection delay time



    0.02S~ 6S

    Short

    protection

    Short protection detection delay time 100 u S
    Detection condition B+ P-0.2 Omh
    restore Cut off load
    Interior Resistance Main loop electrify resistance 2 OMh(50A)
    Currentconsumption Current consume in normal operation 1.5mA Type
    Currentconsumption Current consume in sleep operation 2 uA Type







                                                    RJ Battery Cycle Test72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful





                                            RJ Battery Destructive Test72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful





                                  RJ Battery Application

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful







                               RJ Battery Warehouse

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful



    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful

    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful



                                                 WHY CHOOSE US?



    1. Our company is a high-tech enterprise, 15 years’ experience in R&D battery.

    2. With a total span of 20000 square meters, production capacity exceed 600,000,000 Ah

    3. Flexible customizing and manufacturing accepted.

    4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers

    and advanced equipment.

    5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

    6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

    7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.



    72v 150ah LiFePO4 Golf Cart Battery EV lithium Conversion Lead acid Replacement Powerful
