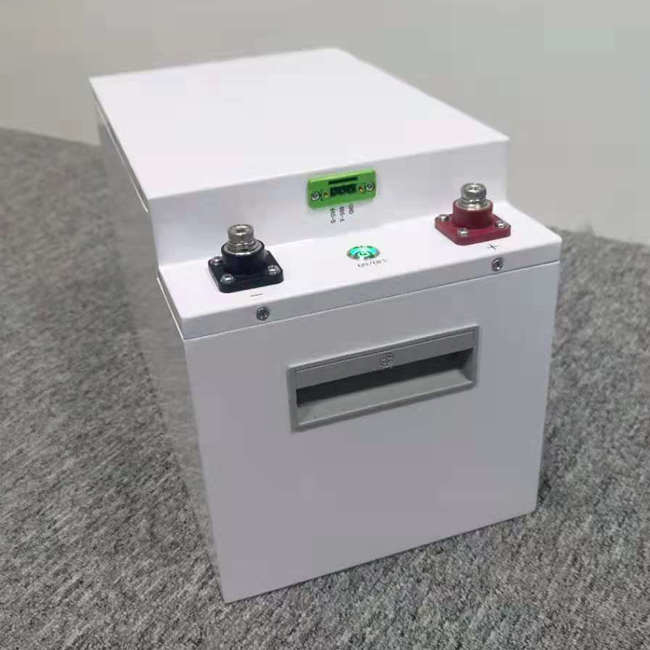

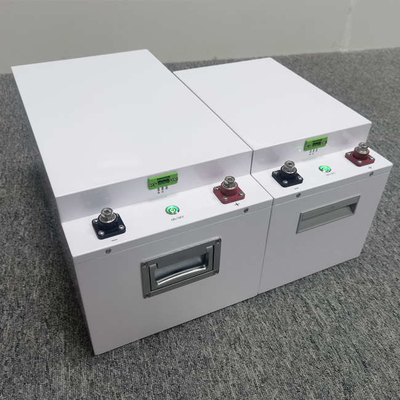

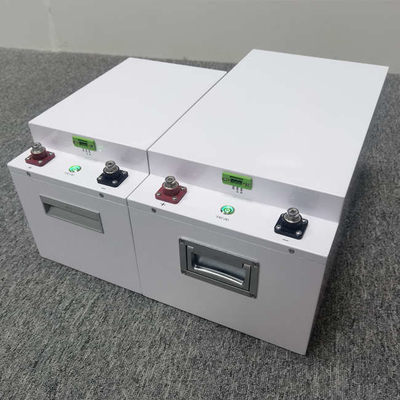

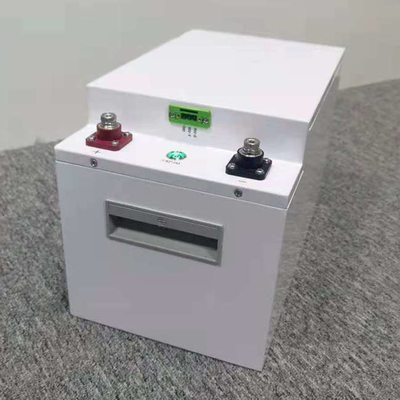

Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan

Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan

    • Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan
    • Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan
    • Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan
    • Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan
  • Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan

    Product Details:

    Place of Origin: China
    Brand Name: RJ
    Certification: MSDS/UN38.3/ROHS/CE/KC
    Model Number: RJ-LFP-12400-WG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD1-100/pcs (FOB Shenzhen)
    Packaging Details: Carton Package
    Delivery Time: 7days
    Payment Terms: TT
    Supply Ability: 100000Sets
    Contact Now
    Detailed Product Description
    Material: LiFepo4 Voltage: 12.8V
    Capacity: 400AH Lifespan: >20years
    LIfe Cycles: >6000times Weight: 43KG

    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS

    for RV Marine Caravan



    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan





    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan



    Items Parameter
    Battery Type LiFePO4
    Rated Voltage 12.8V
    Rated Capacity 400Ah
    Energy 5120Wh
    Limited Charge Voltage 14.6V
    Charge Method CC/CV
    Discharge Cut-off Voltage 10.0V
    Recommend Charge Current <100A
    Continuous Discharge Current 150A
    Pulse Discharge Current 300A (Peak)
    Cycle Life > 6000 cycles
    Communication functions Bluetooth/RS485/CANBUS Optional
    Temperature protection Available
    Auto heating function Optional
    Built in Battery Management System Internal
    Automatic Short Circuit Protection Instant
    Internal Cell Thermal Safety Fuse Yes
    Automatic Internal Cell Balancing Yes
    Automatic Fault Recovery Yes
    Dimension 480*260*235mm
    Weight 43kg
    Charge Temperature Range 0~60℃
    Discharge Temperature Range -20~70℃
    Recommended Operating Temperature 15~45℃
    Series Connection Customized
    Parallel Connection Customized





    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan



    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan



    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan





    No. Item Test Item Criterion
    1 Voltage Charging Voltage DC:14.4V CC/CV
    Balance voltage for single cell 3.50±0.025V
    2 Current Balance voltage for single cell 35±5mA
    Current consumption ≤50μA
    Charging current 100A
    Rated continuous discharging current 150A (Peak 300A)
    3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
    Over charge detection delay time 0.7S—1.3S
    Over charge release voltage for single cell 3.550±0.05V
    4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
    Over discharge detection delay time 1.6±0.5S
    Over discharge release voltage for single cell 3.00±0.75V
    5 Over current Protection Over current detection current 300A
    Over current detection delay time 1.6±0.5S
    Release condition Cut load
    6 Short Protection Detection condition Exterior short circuit
    Detection delay time 230uS—500uS
    Release condition Cut load
    7 Communication RS485/RS232/CANBUS/Bluetooth Optional
    8 Auto heating Auto start self heating against extreme cold weather Optional
    9 Temperature Operating Temperature Range -40~+85℃
    Storage Temperature Range -40~+85℃





    Note BMS is customizable. More advanced functions available, such as bluetooth, RS485,

    CAN, Automaticaly Heating functions, High temperature shut off, Low temperature shut off,

    BMS protocol available etc. Contact us for more details!



    Self-heated Function  (Optional)



    To relieve winter range anxiety in some freezing environment, the BMS can bring with

    self heating function. Resistance heating rapidly warms the inside of battery.

    Start heating temperature:≤0°C. Stop heating temperature:≥10°C.

    Can improve battery charge / discharge performance.





    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan





    Bluetooth Function (Optional)



    LiFePO4 technology offers high-powered cell performance compatible with lots of lithium-ion
    application to deliver more power and extend long life. Also builted with bluetooth function allow
    you to read battery status freely anytime via your smart phone.



    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan







    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan

    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan









    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan

    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan







    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine CaravanLithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine CaravanLithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan



    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine CaravanLithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan





    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan



    1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

    2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

    3. Flexible customizing and manufacturing accepted.

    4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

    5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

    6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

    7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.





    Lithium RV Battery 12v 400ah LiFePO4 Battery deep cycle with BMS for RV Marine Caravan
