EV battery pack 60v 40ah lithium iron phosphate battery for electric scooter

Contact Now

Detailed Product Description

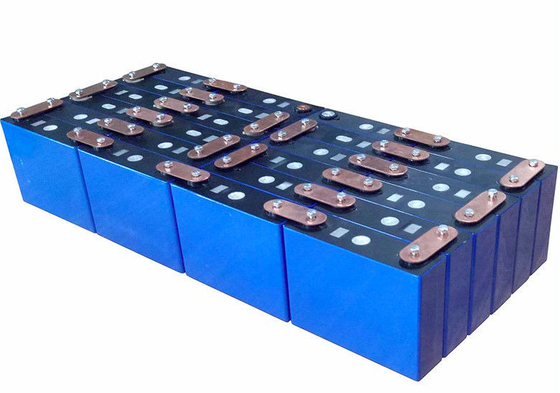

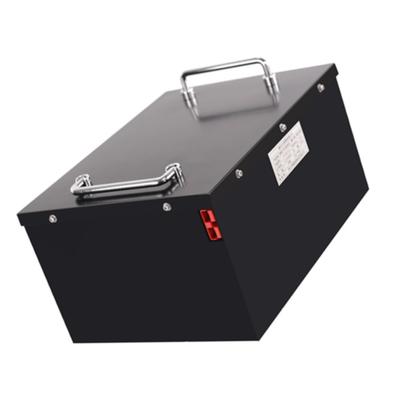

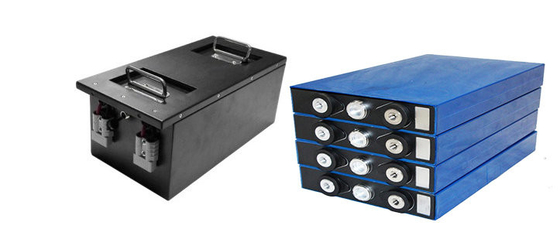

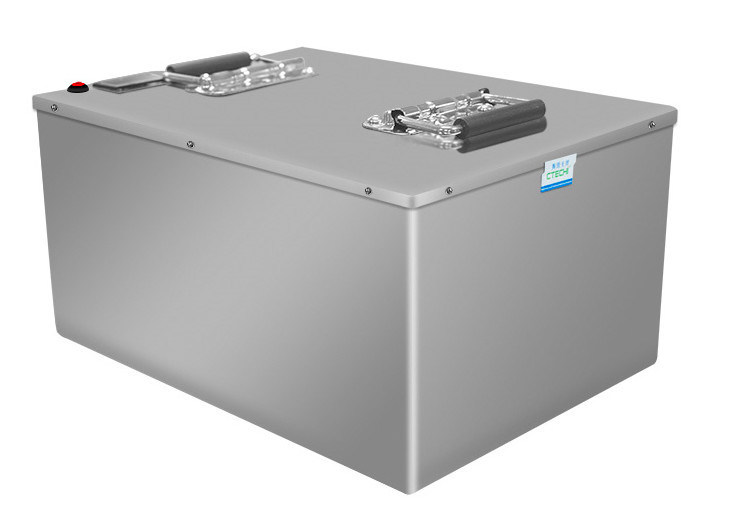

EV battery pack 60v 40ah lithium battery for electric scooter

WHY CHOOSE US?

1. Our company is a high-tech enterprise with 10 years’ experience in R&D battery.

2. With a total span of 20000 square meters, our monthly production capacity can exceed 6,000,000 Ah in our factories.

3. Flexible customizing and manufacturing accepted.

4. We promise providing high quality products with our professional R&D team, accomplished and experienced workers and advanced equipment.

5. Strict management and control for every progress in producing and 100% QC inspection before shipment.

6. We provide service of sample and prompt shipment, and sending someone to follow up the logistics progress after delivery.

7. 5 years warranty(extendible up to 10years). Professional after-sales service, give instruction on how to use the products.

Item	Specification	Note
Nominal Voltage:	60V	Any voltage can be customized
Nominal Capacity:	40Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	40A	Free customization service
Cont. Discharge:	40A	Free customization service
Peak Discharge:	200A	Free customization service
Impedance:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC/CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Dimension:	Flexible	Any dimension can be customized
Weight:	Flexible

Built-In BMS

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Charge Over current protection	Charge Over current detection current	1~100A
Charge Over current protection	Charge Over current detection delay time	0.02S~ 6S
Discharge Over current protection	Discharge Over current detection current	1~600A
Discharge Over current protection	Discharge Over current detection delay time	0.02S~ 6S
Short protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Currentconsumption	Current consume in normal operation	1.5mA Type
Currentconsumption	Current consume in sleep operation	2 uA Type
